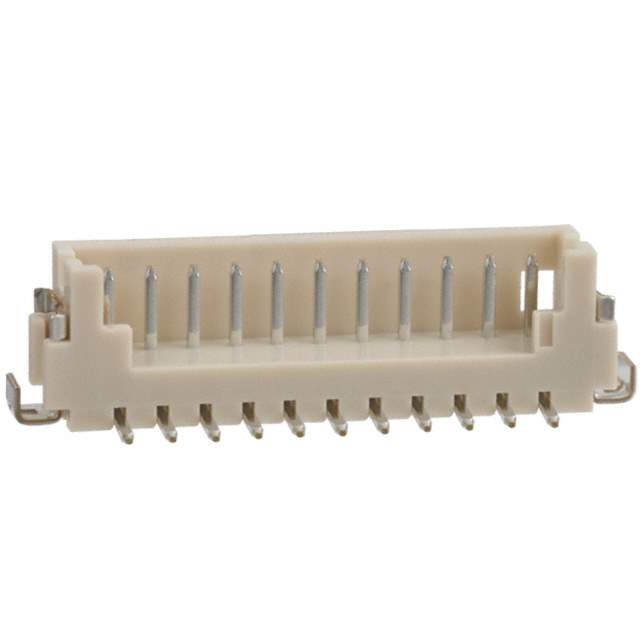

Same model may have multiple batches, images only for reference.

DF13B-11P-1.25V(21)

Name: DF13B-11P-1.25V(21)
Brand: Hirose Electric Co Ltd
SKU: 772567
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	DF13B-11P-1.25V(21)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER 11POS 1.25MM SMD TIN / Conn Wire to Board HDR 11 POS 1.25mm Solder ST SMD T/R
Datasheet	DF13B-11P-1.25V(21) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Hirose Electric Co Ltd
Series	DF13
Packaging	Reel package
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.049" (1.25mm)
Style	Board to Cable/Wire
Shrouding	Shrouded - 3 Wall
Number of Positions	11
Number of Positions Loaded	All
Number of Rows	1
Mounting	SMD
Termination	Solder
Fastening Type	Detent Lock
Insulation Height	0.189" (4.80mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	39μin (1.00μm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Features	Board Guide, Solder Retention
Operating Temperature Range	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Beige
Current Rating	1A
Voltage Rating	150V
Mated Stacking Heights	5.8mm
Win Source Part Number	772567-DF13B-11P-1.25V(21)
Popularity	Medium
Supply and Demand Status	Balance
Quantity per package	1k pcs
Family Name	DF13B
ECCN	EAR99
Country of Origin	Japan
Ultra Librarian 3D Model	Ultra Librarian DF13B-11P-1.25V(21) CAD Model

Alternative Products

Description

The DF13B-11P-1.25V(21) is a board-to-cable/wire connector header manufactured by Hirose Electric Co Ltd.

Positions: 11
Current Rating: 1A
Shrouding: 3 walls
Fastening Type: Detent lock
Contact Material: Brass
Contact Finish: Tin
Insulation Material: Polyamide (PA), nylon
Insulation Color: Beige
