Same model may have multiple batches, images only for reference.

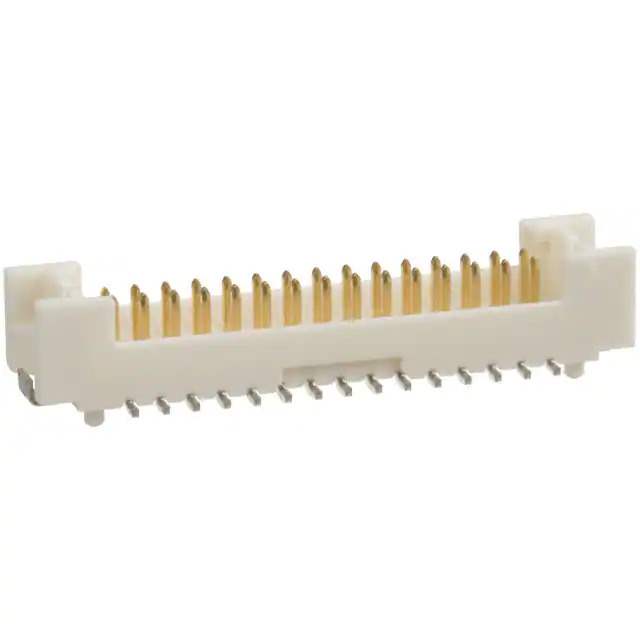

DF13A-30DP-1.25V(91) Real Image
Same model may have multiple batches, images only for reference.

DF13A-30DP-1.25V(91)

Part No DF13A-30DP-1.25V(91)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER SMD 30POS 1.25MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF13
Package Tape & Reel
Product Status Discontinued
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Number of Positions 30
Number of Rows 2
Row Spacing - Mating 0.049" (1.25mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.094" (2.40mm)
Insulation Height 0.189" (4.80mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Contact Finish - Post Tin-Copper
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -35°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating (Amps) 1A
Voltage Rating 150V
Mated Stacking Heights 5.8mm
Contact Finish Thickness - Post 39.4µin (1.00µm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 848937-DF13A-30DP-1.25V(91)
Ultra Librarian 3D Model Ultra Librarian DF13A-30DP-1.25V(91) CAD Model

Description

The DF13A-30DP-1.25V(91) is a header connector from Hirose Electric Co Ltd.

  • Series: DF13
  • Number of Positions: 30
  • Solder Retention: Yes
  • Contact Type: Male Pin
  • Loaded Positions: All
  • Number of Rows: 2
  • Termination: Solder
  • Fastening Type: Detent Lock
  • Packaging: Tape & Reel (TR)
  • Standard Package: 1,000 pcs
  • Contact Material: Brass
  • Voltage Rating: 150V
  • Mated Stacking Height: 5.8mm
  • Ingress Protection: None
  • Material Flammability Rating: UL94 V-0
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8536.69.4040
  • Product Status: Discontinued
