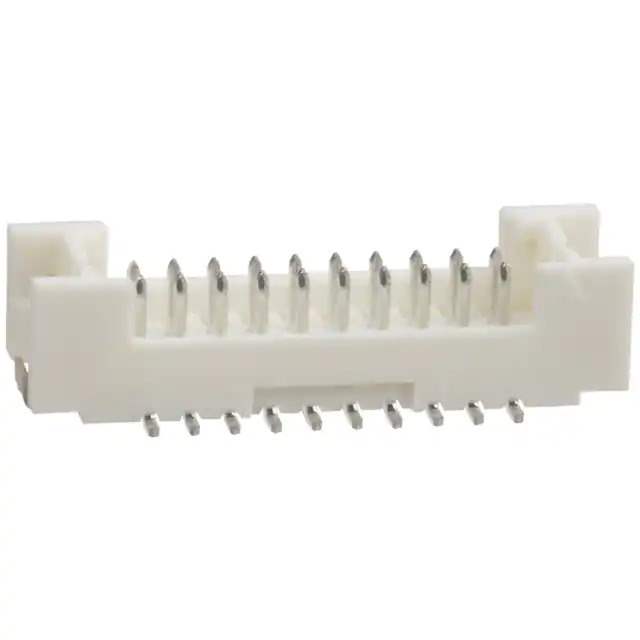

DF13A-20DP-1.25V(95) Real Image
Same model may have multiple batches, images only for reference.

DF13A-20DP-1.25V(95)

Part No DF13A-20DP-1.25V(95)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER SMD 20POS 1.25MM / Connector Header Surface Mount 20 position 0.049" (1.25mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF13
Package Tape & Reel
Product Status Discontinued
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.049" (1.25mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.094" (2.40mm)
Insulation Height 0.189" (4.80mm)
Contact Shape Square
Contact Finish - Mating Tin-Copper
Contact Finish Thickness - Mating 39.4µin (1.00µm)
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -35°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating (Amps) 1A
Voltage Rating 150V
Mated Stacking Heights 5.8mm
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 868429-DF13A-20DP-1.25V(95)
Ultra Librarian 3D Model Ultra Librarian DF13A-20DP-1.25V(95) CAD Model

Description

The DF13A series is a range of rectangular connectors designed for board to cable/wire connections.

  • Positions: 20
  • Pitch: 0.049" (1.25mm)
  • Fastening Type: Detent Lock
  • Termination: Solder
  • Contact Material: Brass
  • Voltage Rating: 150V
  • Current Rating: 1A
  • Design: Shrouded, 4-Wall
  • Mounting: Surface Mount
  • Temperature Range: -35°C to 85°C
