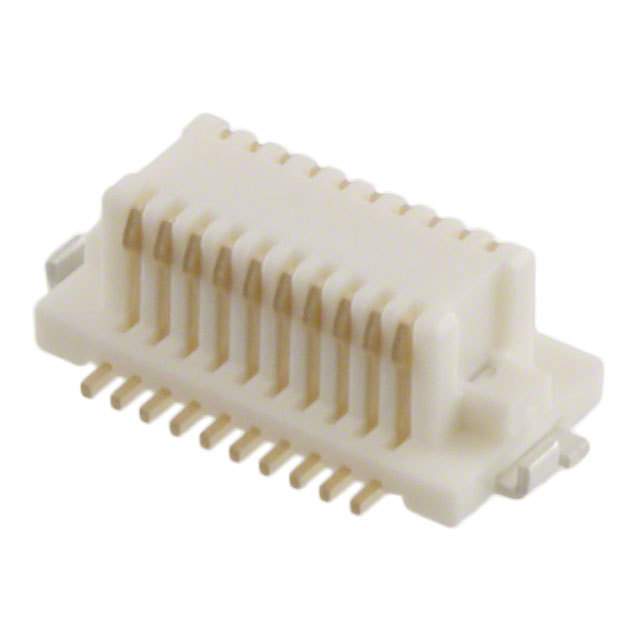

DF12A-20DS-0.5V(81)

Name: DF12A-20DS-0.5V(81)
Brand: Hirose Electric Co Ltd
SKU: 584401
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

Part No	DF12A-20DS-0.5V(81)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	0.5mm Pitch SMT Board to Board Connector
Datasheet	DF12A-20DS-0.5V(81) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Hirose Electric Co Ltd
Series	DF12
Packaging	Reel - TR
Connector Type	Receptacle, Center Strip Contacts
Number of Positions	20
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting	SMD
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	8μin (0.20μm)
Mated Stacking Heights	3.5mm, 4mm, 5mm
Height Above Board	0.106" (2.70mm)
Win Source Part Number	1167089-DF12A-20DS-0.5V(81)
Manufacturer Homepage	www.hirose-connectors.com
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	1k pcs
Family Name	DF12
Introduction Date	January 03, 1997
ECCN	EAR99
Country of Origin	Japan
Halogen Free	Unknown
Estimated EOL Date	2024
Ultra Librarian 3D Model	Ultra Librarian DF12A-20DS-0.5V(81) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd DF12 Receptacle Connector is a 20-position, SMD connector with a pitch of 0.020" (0.50mm).

Pitch: 0.020" (0.50mm)
Positions: 20
Mounting Type: SMD
Features: Board guide
Contact Finish: Gold
Contact Finish Thickness: 8μin (0.20μm)
Height Above Board: 0.106" (2.70mm)
Category: Connectors, Interconnects
Popularity: Medium
Supply and Demand Status: Limited
Package Quantity: 1k pcs per package
Estimated EOL Date: 2024
