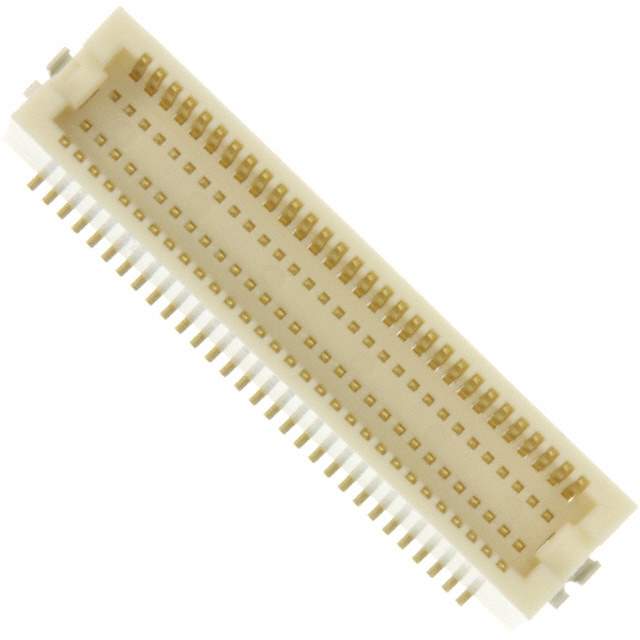

DF12(5.0)-60DP-0.5V(86) Real Image
Same model may have multiple batches, images only for reference.

DF12(5.0)-60DP-0.5V(86)

Part No DF12(5.0)-60DP-0.5V(86)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Housings
Description CONN HDR 60POS SMD GOLD / 60 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series DF12
Package Tape & Reel
Product Status Obsolete
Connector Type Header, Outer Shroud Contacts
Number of Positions 60
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting SMD (SMT)
Features Board Guide, Solder Retention
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Mated Stacking Heights 5mm
Height Above Board 0.169" (4.30mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names *DF12(5.0)-60DP-0.5V(86),H5006CT,H5006DKR,DF125060DP05V86,537-0161-7 86,H5006TR,537-0161-7-86
Standard Package 1,000
Win Source Part Number 1178856-DF12(5.0)-60DP-0.5V(86)
Ultra Librarian 3D Model Ultra Librarian DF12(5.0)-60DP-0.5V(86) CAD Model

Description

The Hirose Electric Co Ltd DF12 Series Connector is an edge type mezzanine rectangular connector with a number of positions of 60 and a pitch of 0.020" (0.50mm).

  • Number of Positions: 60
  • Pitch: 0.020" (0.50mm)
  • Features: Board Guide, Solder Retention
  • Type: Header with Outer Shroud Contacts
  • Contact Finish: Gold with a thickness of 8.00μin (0.203μm)
  • Package: Tape & Reel
  • Mated Stacking Height: 5mm
  • Height Above Board: 0.169" (4.30mm)
  • Mounting Technology: SMD (SMT)
