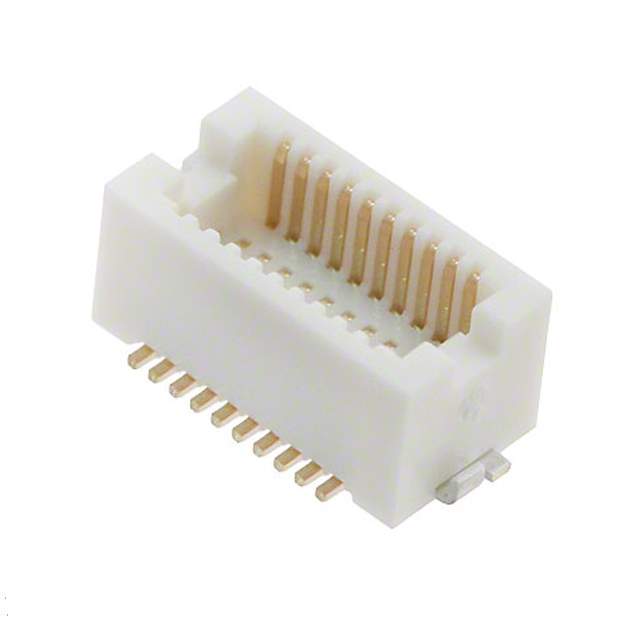

DF12(5.0)-20DP-0.5V(86) Real Image
Same model may have multiple batches, images only for reference.

DF12(5.0)-20DP-0.5V(86)

Part No DF12(5.0)-20DP-0.5V(86)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 20POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Features 20 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Manufacturer Hirose Electric Co Ltd
Series DF12
Package Reel - TR
Part Status Obsolete
Mounting Surface Mount
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number H5244DKR, DF125020DP05V86, 537-0153-9-86, H5244TR, *DF12(5.0)-20DP-0.5V(86), 537-0153-9 86, H5244CT
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 868384-DF12(5.0)-20DP-0.5V(86)
Ultra Librarian 3D Model Ultra Librarian DF12(5.0)-20DP-0.5V(86) CAD Model

Description

The Hirose Electric Co Ltd DF12(5.0)-20DP-0.5V(86) connector header is a surface mount 20 position device with an outer shroud contact and gold plating.

  • Series: DF12
  • Status: Obsolete
  • Package: Reel
  • Pieces per Package: 1000
  • Demand: Medium
  • Availability: Difficult to find due to its obsolete status
  • Other Part Numbers: H5244DKR, DF125020DP05V86, 537-0153-9-86, H5244TR, *DF12(5.0)-20DP-0.5V(86), 537-0153-9 86, and H5244CT
