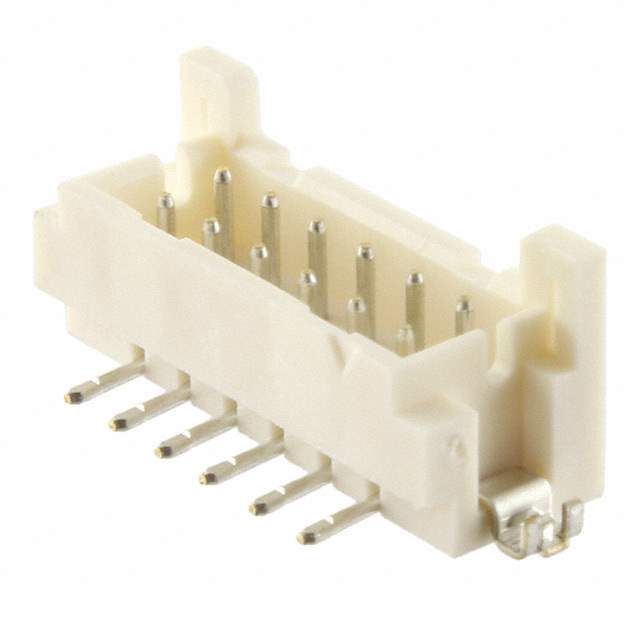

DF11CZ-12DP-2V(27) Real Image1 DF11CZ-12DP-2V(27) Real Image2
Same model may have multiple batches, images only for reference.
DF11CZ-12DP-2V(27) Real Image1 DF11CZ-12DP-2V(27) Real Image2
DF11CZ-12DP-2V(27) Real Image1 DF11CZ-12DP-2V(27) Real Image2
Same model may have multiple batches, images only for reference.

DF11CZ-12DP-2V(27)

Part No DF11CZ-12DP-2V(27)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Housings
Description CONN HEADER SMD 12POS 2MM / Connector Header Surface Mount 12 position 0.079" (2.00mm)
Datasheet
DF11CZ-12DP-2V(27) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF11
Package Tape & Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 12
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.283" (7.19mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39.4µin (1.00µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Pick and Place, Solder Retention
Temperature Range - Operating -30°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating (Amps) 2A
Voltage Rating 250V
Mated Stacking Heights 8.2mm, 8.45mm, 9.55mm
Base Product Number DF11C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names Q7132075K,H122037CT,H122037DKR,543-2051-1-27,H122037TR,T1858381,DF11CZ-12DP-2V(27)-NDL,DF11CZ-12DP-2V(27)-ND,Q7219375A,Q6974172B
Standard Package 500
Win Source Part Number 988839-DF11CZ-12DP-2V(27)
Ultra Librarian 3D Model Ultra Librarian DF11CZ-12DP-2V(27) CAD Model

Description

The Hirose Electric Co Ltd DF11CZ-12DP-2V(27) is a male pin header connector that is designed for use in board to board or cable applications.

  • Positions: 12
  • Loaded: All positions
  • Features: Pick and place, solder retention, and a detent lock
  • Operating Temperature Range: -30°C to 85°C
  • Package: Tape & reel
  • Mounting: SMD (SMT)
  • Voltage Rating: 250V
  • Current Rating: 2A
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
