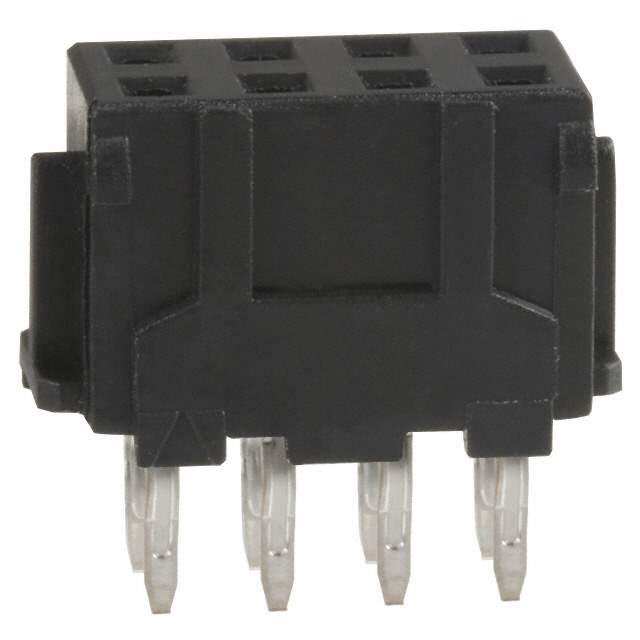

Same model may have multiple batches, images only for reference.

DF11-8DS-2DSA

Name: DF11-8DS-2DSA
Brand: Hirose Electric Co Ltd
SKU: 1293099
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	DF11-8DS-2DSA
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Datasheet	DF11-8DS-2DSA Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Hirose Electric Co Ltd
Series	DF11
Package	Bulk
Product Status	Obsolete
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	8
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting Type	Through Hole
Termination	Press-Fit, Solder
Fastening Type	Friction Lock
Contact Finish - Mating	Tin
Insulation Color	Black
Insulation Height	0.244" (6.20mm)
Contact Length - Post	0.118" (3.00mm)
Temperature Range - Operating	-30°C ~ 85°C
Material Flammability Rating	UL94 V-0
Mated Stacking Heights	7.8mm, 8.45mm
Current Rating (Amps)	2A
Voltage Rating	250V
Applications	General Purpose
Insulation Material	Polyamide (PA), Nylon
Contact Shape	Square
Contact Material	Phosphor Bronze
Other Names	Q1153878H,*DF11-8DS-2DSA,H2030
Standard Package	100
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293099-DF11-8DS-2DSA
Ultra Librarian 3D Model	Ultra Librarian DF11-8DS-2DSA CAD Model

Description

The DF11-8DS-2DSA Rectangular Connector from Hirose Electric Co Ltd is a high-quality product with a 2-row female socket contact type and a friction lock fastening type.

Termination: Press-Fit and Solder
Mounting Type: Through Hole
Voltage Rating: 250V
Current Rating: 2A
Temperature Range: -30°C to 85°C
Material Flammability Rating: UL94 V-0
Packaging: Bulk
Standard Package: 100
MSL Level: 1 (Unlimited)
REACH Status: Unaffected
HTSUS: 8536.69.4040
Product Status: Obsolete
