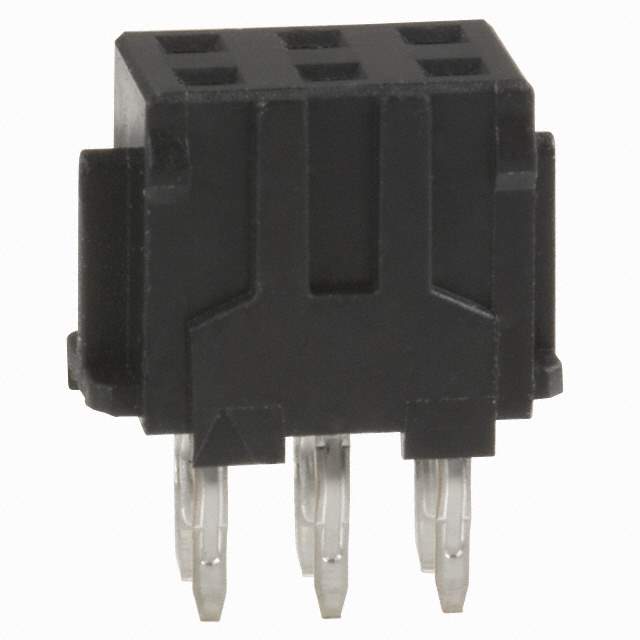

Same model may have multiple batches, images only for reference.

DF11-6DS-2DSA(05)

Name: DF11-6DS-2DSA(05)
Brand: Hirose Electric Co Ltd
SKU: 1332336
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DF11-6DS-2DSA(05)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN RCPT 6POS 0.079 TIN PCB / 6 Position Receptacle Connector 0.079" (2.00mm) Through Hole Tin
Datasheet	DF11-6DS-2DSA(05) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Manufacturer	Hirose Electric Co Ltd
Packaging	Tray
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	6
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting	Through Hole
Termination	Press-Fit, Solder
Fastening Type	Friction Lock
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	78.7µin (2.00µm)
Insulation Color	Black
Insulation Height	0.244" (6.20mm)
Contact Length - Post	0.118" (3.00mm)
Temperature Range - Operating	-30°C ~ 85°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	7.8mm, 8.45mm
Current Rating (Amps)	2A
Voltage Rating	250V
Applications	General Purpose
Insulation Material	Polyamide (PA), Nylon
Contact Shape	Square
Contact Material	Brass
Contact Finish Thickness - Post	78.7µin (2.00µm)
Base Product Number	DF11
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	*DF11-6DS-2DSA(05),H10169,DF116DS2DSA05,543-0553-9-05
Standard Package	100
Win Source Part Number	1332336-DF11-6DS-2DSA(05)
Ultra Librarian 3D Model	Ultra Librarian DF11-6DS-2DSA(05) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd DF11-6DS-2DSA(05) is a rectangular connector with a receptacle connector type.

Positions: 6
Rows: 2
Positions Loaded: All
Voltage Rating: 250V
Current Rating: 2A
Mounting Type: Through Hole
Pitch: 0.079 inches (2.00mm)
Contact Finish (Mating/Post): Tin
Finish Thickness: 78.7µin (2.00µm)
Insulation Material: Polyamide (PA) or Nylon
Insulation Color: Black
Style: Board to Board or Cable
Contact Shape: Square
Temperature Range: -30°C to 85°C
RoHS Compliant: Yes
