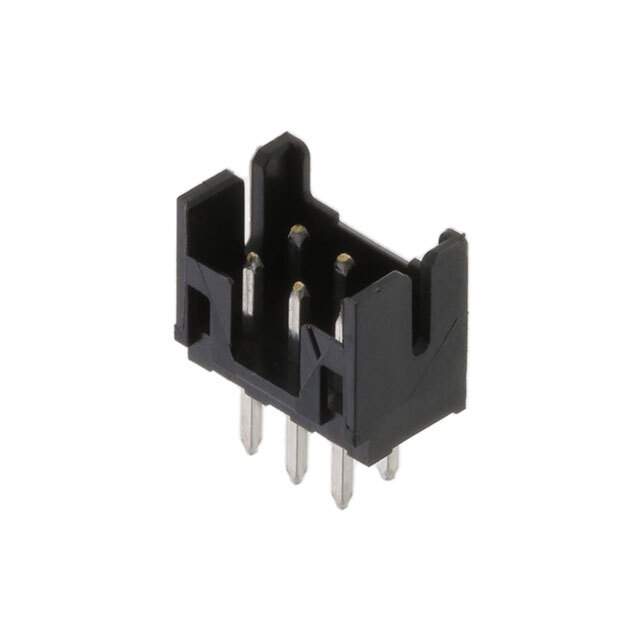

DF11-6DP-2DSA(24) Real Image
Same model may have multiple batches, images only for reference.

DF11-6DP-2DSA(24)

Part No DF11-6DP-2DSA(24)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER 6POS 2MM PCB TIN / Conn Shrouded Header (4 Sides) HDR 6 POS 2mm Solder ST Thru-Hole Tube
Datasheet
DF11-6DP-2DSA(24) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Series DF11
Packaging Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Number of Positions 6
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting Style Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.118" (3.00mm)
Contact Length - Post 0.118" (3.00mm)
Overall Contact Length 0.299" (7.60mm)
Insulation Height 0.260" (6.60mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39μin (1.00μm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Operating Temperature Range -30°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating 2A
Voltage Rating 250V
Mated Stacking Heights 7.55, 7.8mm, 8.9mm
Win Source Part Number 772558-DF11-6DP-2DSA(24)
Popularity Medium
Supply and Demand Status Limited
Quantity per package 61
Family Name DF11
Introduction Date January 20, 1999
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian DF11-6DP-2DSA(24) CAD Model

Description

The Hirose Electric Co Ltd DF11 series header connector is a high-quality electronic component.

  • Connector Type: Male Pin
  • Positions: 6
  • All Positions Loaded: Yes
  • Mounting Style: Through Hole
  • Fastening Type: Detent Lock
  • Contact Material: Brass
  • Voltage Rating: 250V
  • Current Rating: 2A
  • Insulation Material: Polyamide (PA), Nylon
  • Flammability Rating: UL94 V-0
  • Pitch: 0.079" (2.00mm)
  • Contact Finish-Mating: Tin (39μin (1.00μm) thickness)
  • Contact Length-Mating: 0.118" (3.00mm)
  • Contact Length-Post: 0.118" (3.00mm)
  • Overall Contact Length: 0.299" (7.60mm)
  • Shrouding: 4 Walls
  • Row Spacing: 0.079" (2.00mm)
  • Applications: Board to Board or Cable
  • Mated Stacking Height: 7.55, 7.8mm, 8.9mm
