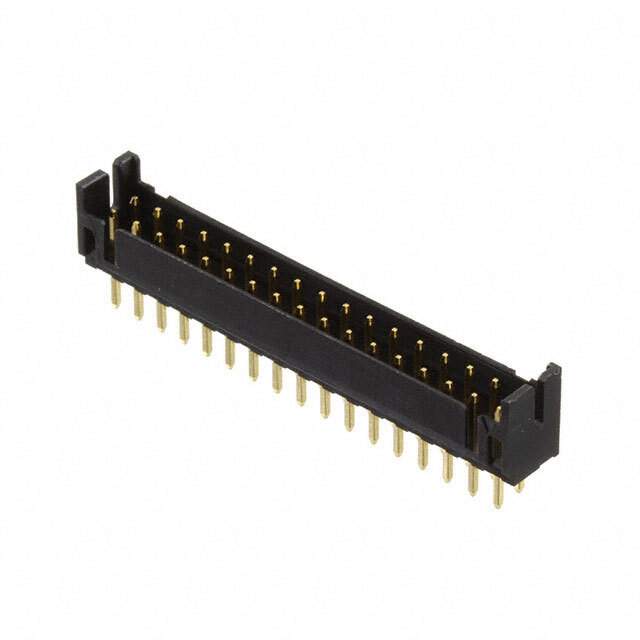

The Hirose Electric Co Ltd DF11-34DP-2DSA(01) is a 34-position, 2-row male pin header connector with a pitch of 2.00mm.

• Number of Positions: 34
• Number of Rows: 2
• Pitch: 2.00mm
• Insulation Material: Polyamide (PA) and nylon
• Color: Black
• Contact Material: Brass
• Contact Finish (Mating): Gold
• Contact Finish Thickness (Mating): 8.00μin (0.203μm)
• Overall Contact Length: 0.299" (7.60mm)
• Contact Length (Mating): 0.118" (3.00mm)
• Contact Length (Post): 0.118" (3.00mm)
• Voltage Rating: 250V
• Current Rating: 2A
• Mounting Type: Through-Hole
• Fastening Type: Detent Lock
• Shrouded: 4 Walls
• Row Spacing (Mating): 0.079" (2.00mm)
• Temperature Range: -30°C ~ 85°C
• Suitable For: Board-to-board or cable style applications
• Packaging: Bulk
• Standard Package: 100
