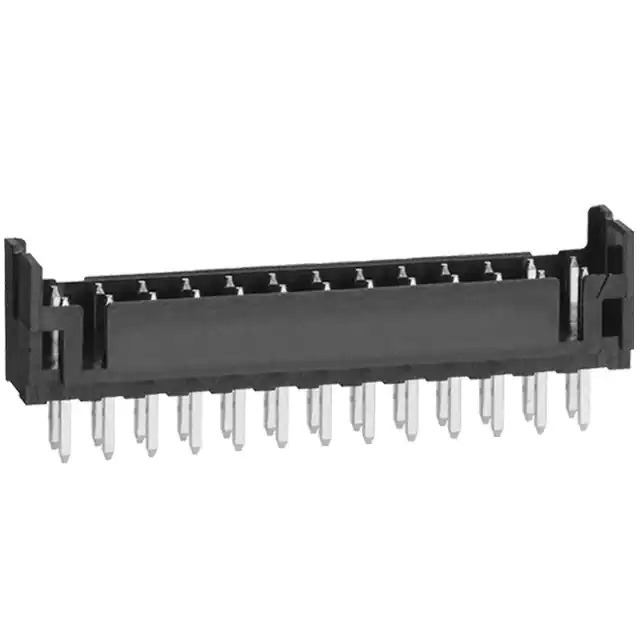

Same model may have multiple batches, images only for reference.

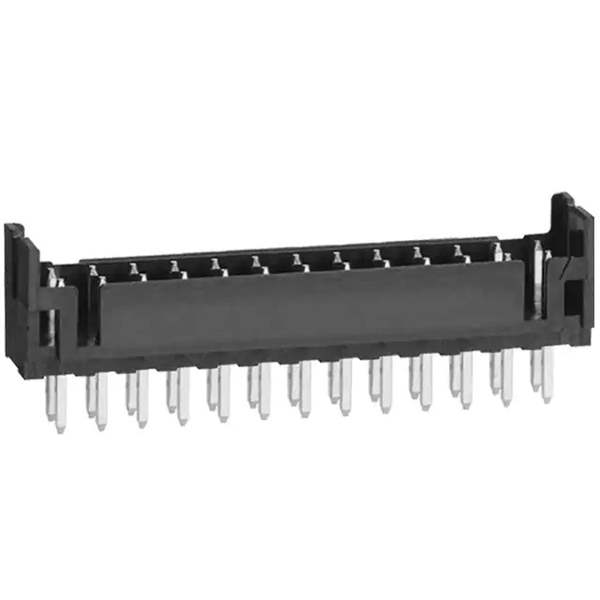

DF11-26DP-2DSA(08) Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

DF11-26DP-2DSA(08)

Part No DF11-26DP-2DSA(08)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER VERT 26POS 2MM / Connector Header Through Hole 26 position 0.079" (2.00mm)
Datasheet
DF11-26DP-2DSA(08) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF11
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 26
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.118" (3.00mm)
Contact Length - Post 0.118" (3.00mm)
Overall Contact Length 0.299" (7.60mm)
Insulation Height 0.260" (6.60mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39.4µin (1.00µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features -
Temperature Range - Operating -30°C ~ 85°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 2A
Voltage Rating 250V
Mated Stacking Heights 7.55, 7.8mm, 8.9mm
Contact Finish Thickness - Post -
Applications -
Base Product Number DF11
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362611-DF11-26DP-2DSA(08)
Ultra Librarian 3D Model Ultra Librarian DF11-26DP-2DSA(08) CAD Model

Description

The DF11-26DP-2DSA(08) is a through-hole rectangular connector header with male pins manufactured by Hirose Electric Co Ltd.

  • Current Rating: 2A
  • Voltage Rating: 250V
  • Series: DF11
  • Fastening: Detent Lock
  • Design: Shrouded with 4 Walls
  • Positions: 26
  • Rows: 2
  • Pitch: 0.079" (2.00mm)
  • Material (Pins): Brass with Tin Finish
  • Insulation Material: Polyamide (PA)
  • Flammability Rating: UL94 V-0
  • Mounting: Through-Hole
  • Application: Board-to-Board or Cable Connections
