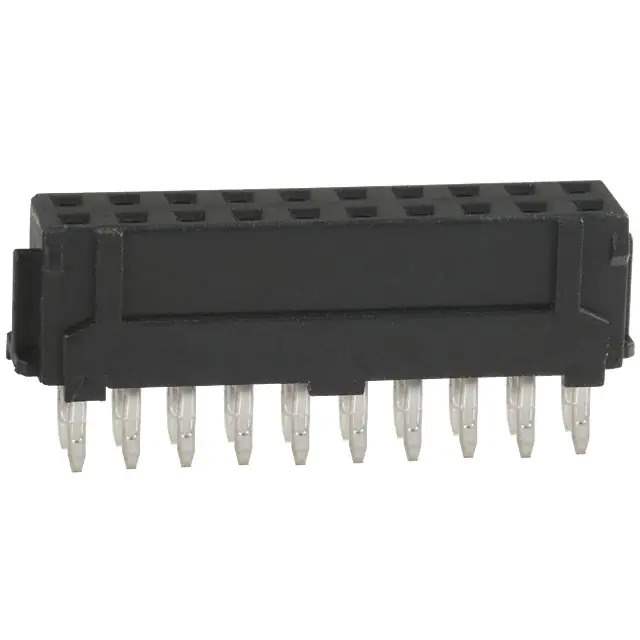

DF11-20DS-2DSA Real Image
Same model may have multiple batches, images only for reference.

DF11-20DS-2DSA

Part No DF11-20DS-2DSA
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RCPT 20POS 0.079 TIN PCB / 20 Position Receptacle Connector 0.079" (2.00mm) Through Hole Tin
Datasheet
DF11-20DS-2DSA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Hirose Electric Co Ltd
Series DF11
Package Bulk
Product Status Obsolete
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 20
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting Type Through Hole
Termination Press-Fit, Solder
Fastening Type Friction Lock
Contact Finish - Mating Tin
Insulation Color Black
Insulation Height 0.244" (6.20mm)
Contact Length - Post 0.118" (3.00mm)
Temperature Range - Operating -30°C ~ 85°C
Material Flammability Rating UL94 V-0
Mated Stacking Heights 7.8mm, 8.45mm
Current Rating (Amps) 2A
Voltage Rating 250V
Applications General Purpose
Insulation Material Polyamide (PA), Nylon
Contact Shape Square
Contact Material Phosphor Bronze
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 916903-DF11-20DS-2DSA
Ultra Librarian 3D Model Ultra Librarian DF11-20DS-2DSA CAD Model

Description

The 916903-DF11-20DS-2DSA is a rectangular connector from Hirose Electric Co Ltd's DF11 series.

  • Series: DF11
  • Connector Type: Receptacle
  • Positions: 20
  • Termination: Press-Fit and Solder
  • Fastening Type: Friction Lock
  • Contact Material: Phosphor Bronze
  • Voltage Rating: 250V
  • Application: General-Purpose
  • Pitch: 0.079" (2.00mm)
  • Mounting: Through-Hole
  • Package: Bulk
  • Standard Package: 100 pieces
  • Temperature Range: -30°C to 85°C
  • Current Rating: 2A
  • ECCN: EAR99
  • REACH: Not affected
  • MSL Level: 1 (unlimited)
  • Status: Obsolete
