Same model may have multiple batches, images only for reference.

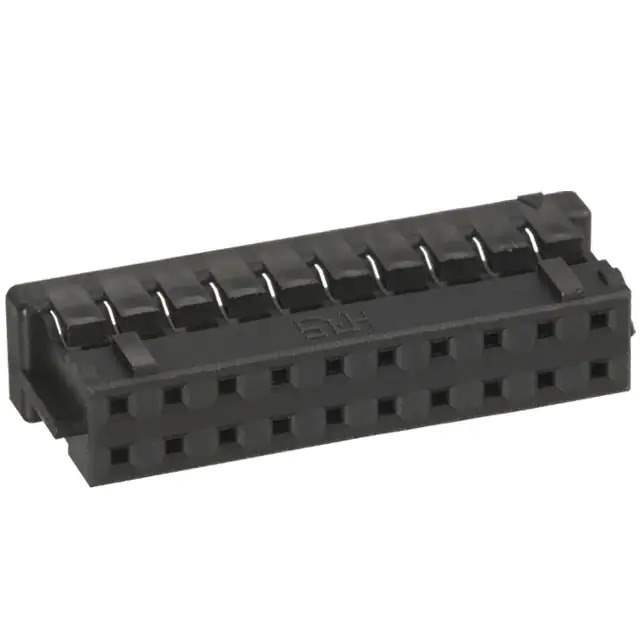

DF11-20DS-2C Real Image
Same model may have multiple batches, images only for reference.

DF11-20DS-2C

Part No DF11-20DS-2C
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RCPT HSG 20POS 2.00MM
Datasheet
DF11-20DS-2C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr Hirose Electric Co Ltd
Series DF11
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 20
Pitch 0.079" (2.00mm)
Number of Rows 2
Row Spacing 0.079" (2.00mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Color Black
Temperature Range - Operating -30°C ~ 85°C
Note Contacts Not Included
Base Product Number DF11
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 584396-DF11-20DS-2C
Ultra Librarian 3D Model Ultra Librarian DF11-20DS-2C CAD Model

Description

The DF11-20DS-2C is a rectangular connector housing designed for receptacles.

  • Positions: 20
  • Pitch: 0.079" (2.00mm)
  • Temperature Range: -30°C to 85°C
  • Series: DF11
