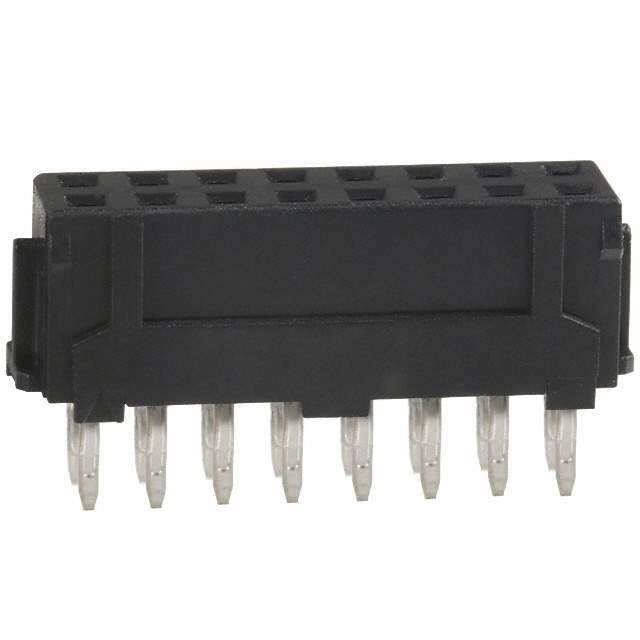

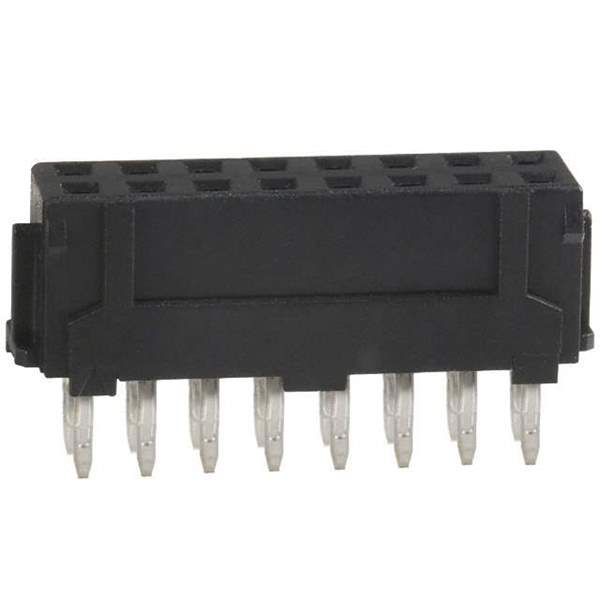

Same model may have multiple batches, images only for reference.

DF11-16DS-2DSA(05)

Name: DF11-16DS-2DSA(05)
Brand: Hirose Electric Co Ltd
SKU: 916899
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DF11-16DS-2DSA(05)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN RCPT 16POS 0.079 TIN PCB
Datasheet	DF11-16DS-2DSA(05) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors
Estimated Pruduction Lead Time	26 Weeks
Features	16 Position Receptacle Connector 0.079" (2.00mm) Through Hole Tin
Manufacturer	Hirose Electric Co Ltd
Series	DF11
Package	Bulk
Operating Temperature Range	-30°C ~ 85°C
Mounting	Through Hole
Family Name	DF11
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	543-0558-2-05, H10174, DF1116DS2DSA05, *DF11-16DS-2DSA(05)
Quantity per package	100
Popularity	High
Supply and Demand Status	Balance
Win Source Part Number	916899-DF11-16DS-2DSA(05)
Ultra Librarian 3D Model	Ultra Librarian DF11-16DS-2DSA(05) CAD Model

Alternative Products

Description

The DF11-16DS-2DSA(05) is a 16 position receptacle connector designed by Hirose Electric Co Ltd.

Positions: 16
Temperature Range: -30°C to 85°C
Mounting Technology: Through Hole
Family Name: DF11
Package: Bulk
Pieces per Package: 100
Application: Commonly used in electronic devices
