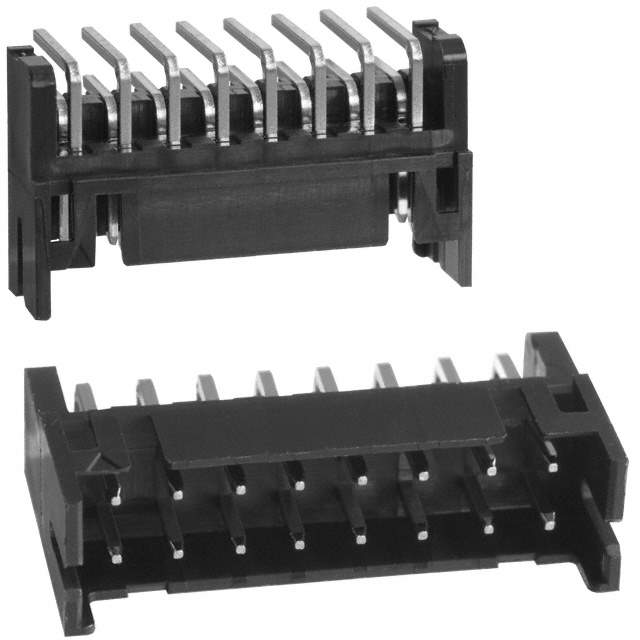

DF11-16DP-2DS(24)

Name: DF11-16DP-2DS(24)
Brand: Hirose Electric Co Ltd
SKU: 1348994
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DF11-16DP-2DS(24)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 16POS 2MM / Connector Header Through Hole, Right Angle 16 position 0.079" (2.00mm)
Datasheet	DF11-16DP-2DS(24) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	DF11
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	16
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.118" (3.00mm)
Contact Length - Post	0.118" (3.00mm)
Insulation Height	0.197" (5.00mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	39.4µin (1.00µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA) , Nylon
Temperature Range - Operating	-40°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2A
Voltage Rating	250V
Base Product Number	DF11
Standard Package	27
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1348994-DF11-16DP-2DS(24)
Ultra Librarian 3D Model	Ultra Librarian DF11-16DP-2DS(24) CAD Model

Alternative Products

Description

The DF11 series male pin header connector is a 16-position header connector with a solder termination. Hirose Electric Co Ltd manufactures the DF11 series male pin header connector.

Positions: 16
Termination: Solder
Fastening Type: Detent Lock
Design: Shrouded 4-Wall
Contact Material: Brass
Insulation Material: Polyamide (PA)
Connections: Board-to-Board or Cable
Pitch Mating: 0.079-inch (2.00mm)
Contact Finish: Tin
Contact Finish Thickness: 39.4µin (1.00µm)
Temperature Range: -40°C to 85°C
Current Rating: 2A
Packaging: Tube
Standard Package: 27
