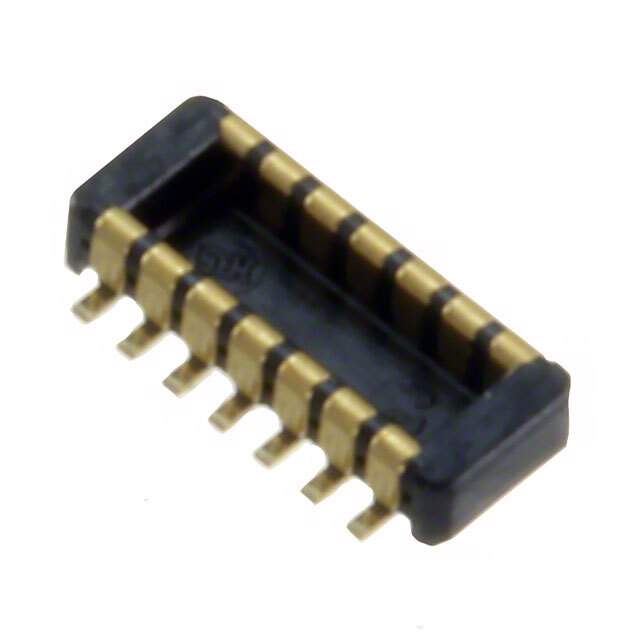

The BM20B(0.8)-10DP-0.4V(53) is a rectangular connector manufactured by Hirose Electric Co Ltd. This connector is part of the BM20 series, known for its compact size and high-density design. It is primarily used for board-to-board connections in various electronic devices.

Applications:

• Smartphones and tablets
• Digital cameras
• Portable gaming devices
• Medical equipment
• Industrial control systems

Features:

• Compact size: Minimizes board space requirements.
• High-density design: Allows for a large number of connections in a small area.
• Board-to-board connection: Facilitates easy and reliable connections between PCBs.
• Surface mount technology (SMT): Enables automated assembly.
• Secure locking mechanism: Ensures a stable and reliable connection.

Benefits:

• Reduced product size: Contributes to smaller and more portable devices.
• Increased design flexibility: Allows for more complex and compact circuit layouts.
• Improved manufacturing efficiency: Enables automated assembly processes.
• Enhanced reliability: Provides a secure and stable connection.

Technical Specifications:

Specific technical specifications include:

• Number of Contacts: 10
• Pitch: 0.8mm
• Mounting Style: Surface Mount
• Current Rating: check datasheet (usually around 0.5A - 1A)
• Voltage Rating: check datasheet (usually around 50V)
• Mating Height: 0.4mm
• Operating Temperature Range: Typically -40°C to +85°C
• Material: High temperature plastic (insulator) and copper alloy (contacts)

The BM20B(0.8)-10DP-0.4V(53) connector provides a reliable and space-saving solution for board-to-board connections in a variety of electronic applications. Its compact design, high-density configuration, and secure locking mechanism make it a suitable choice for modern electronic devices requiring efficient and dependable connectivity. Always refer to the Hirose Electric datasheet for the most accurate and up-to-date specifications.
