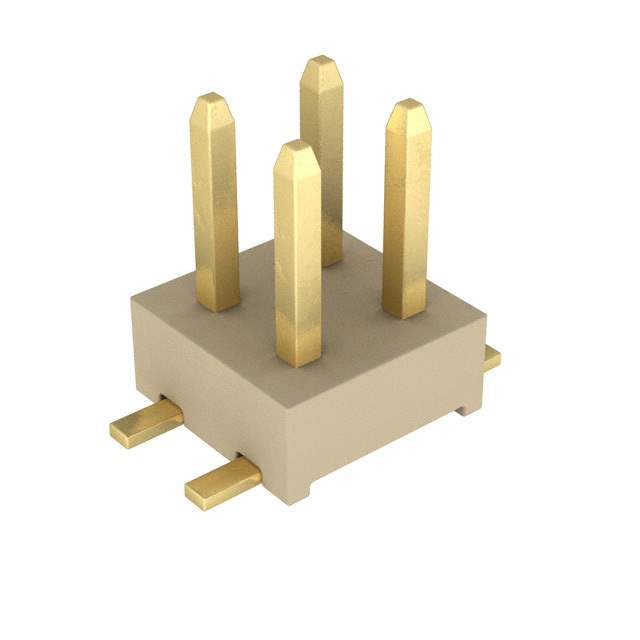

Same model may have multiple batches, images only for reference.

A3-4PA-2SV(71)

Name: A3-4PA-2SV(71)
Brand: Hirose Electric Co Ltd
SKU: 1349183
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	A3-4PA-2SV(71)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 4POS 2MM / Connector Header Surface Mount 4 position 0.079" (2.00mm)
Datasheet	A3-4PA-2SV(71) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	A3
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	4
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.138" (3.50mm)
Insulation Height	0.071" (1.80mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	8.00µin (0.203µm)
Contact Finish - Post	Gold
Contact Material	Brass
Insulation Material	Polyphenylene Sulfide (PPS)
Temperature Range - Operating	-55°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Brown
Current Rating (Amps)	1A
Voltage Rating	200V
Mated Stacking Heights	6mm, 8.8mm
Contact Finish Thickness - Post	Flash
Base Product Number	A3-4PA-2
Standard Package	120
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1349183-A3-4PA-2SV(71)
Ultra Librarian 3D Model	Ultra Librarian A3-4PA-2SV(71) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd A3 series male header connector is an ideal choice for applications requiring a reliable and efficient connection.

Position Count: 4
Row Configuration: 2-row
Contact Gender: Male pin
Fastening Type: Push-pull
Voltage Rating: 200V
Current Rating: 1A
Contact Material: Brass
Flammability Rating: UL94 V-0
Pitch: 0.079" (2.00mm)
Mounting: Surface mount
Application: Board to board or cable
Package: Tube
Standard Package: 120
