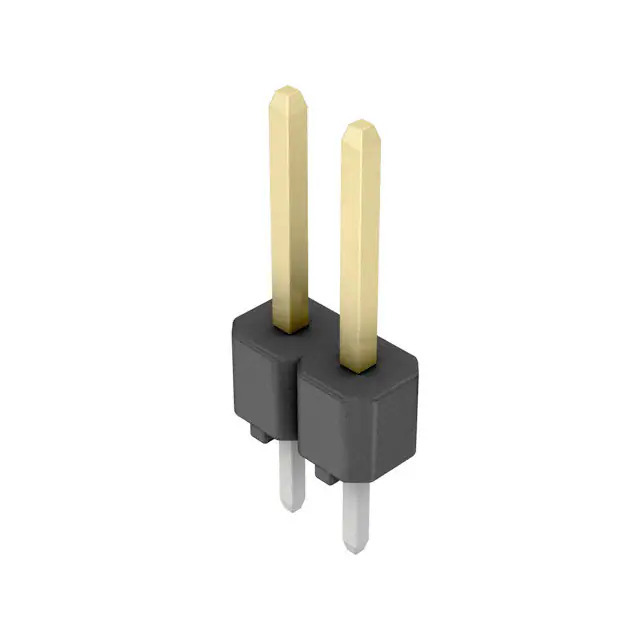

Same model may have multiple batches, images only for reference.

A2-2PA-2.54DSA(71)

Name: A2-2PA-2.54DSA(71)
Brand: Hirose Electric Co Ltd
SKU: 1366044
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	A2-2PA-2.54DSA(71)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 2POS 2.54MM / Connector Header Through Hole 2 position 0.100" (2.54mm)
Datasheet	A2-2PA-2.54DSA(71) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	A2
Package	Bulk
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	2
Number of Rows	1
Row Spacing - Mating	-
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.236" (6.00mm)
Contact Length - Post	0.118" (3.00mm)
Overall Contact Length	0.454" (11.54mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	8.00µin (0.203µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polybutylene Terephthalate (PBT)
Features	-
Temperature Range - Operating	-55°C ~ 85°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Voltage Rating	200V
Mated Stacking Heights	-
Contact Finish Thickness - Post	78.7µin (2.00µm)
Applications	-
Base Product Number	A2-2PA-2
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1366044-A2-2PA-2.54DSA(71)
Ultra Librarian 3D Model	Ultra Librarian A2-2PA-2.54DSA(71) CAD Model

Alternative Products

Description

The A2-2PA-2.54DSA(71) is a through-hole rectangular connector header with male pins manufactured by Hirose Electric Co Ltd.

Current Rating: 3A
Voltage Rating: 200V
Series: A2
Fastening Type: Push-pull
Positions: 2
Rows: 1
Pitch: 0.100" (2.54mm)
Contact Material: Brass with a gold finish
Insulation Material: Polybutylene terephthalate (PBT)
Flammability Rating: UL94 V-0
