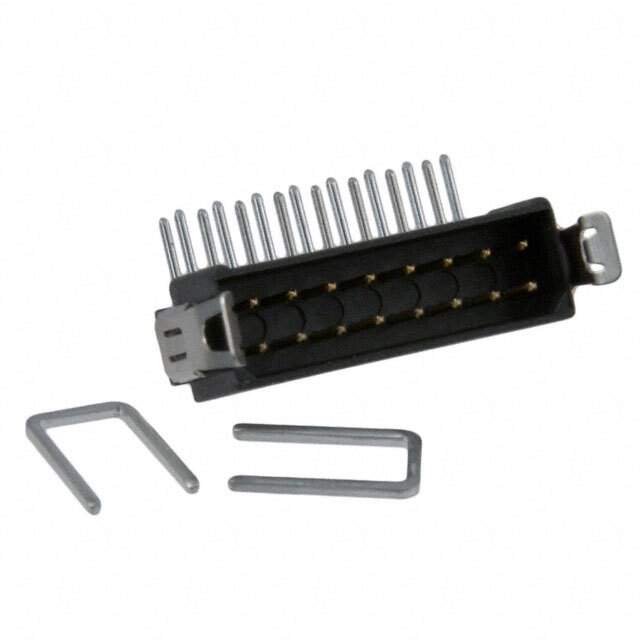

M80-8511642 Real Image
Same model may have multiple batches, images only for reference.

M80-8511642

Part No M80-8511642
Manufacturer Harwin Inc.
Catalog Rectangular Connectors
Description CONN HEADER R/A 16POS 2MM
Datasheet
M80-8511642 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 17 Weeks
Features Connector Header Through Hole, Right Angle 16 position 0.079" (2.00mm)
Manufacturer Harwin Inc.
Series Datamate L-Tek
Package Tube
Operating Temperature Range -55°C ~ 125°C
Mounting Through Hole, Right Angle
Family Name M80-851
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number M808511642, 952-1133-5
Quantity per package 13
Popularity High
Supply and Demand Status Balance
Win Source Part Number 924990-M80-8511642
Ultra Librarian 3D Model Ultra Librarian M80-8511642 CAD Model

Description

The Datamate L-Tek M80-8511642 from Harwin Inc. is a through-hole, right-angle connector header.

  • Mounting: Through-hole, right-angle
  • Positions: 16
  • Pitch: 0.079 inches (2.00mm)
  • Packaging: Tube
  • Family Name: M80-851
  • Operating Temperature: -55°C to 125°C
