Same model may have multiple batches, images only for reference.

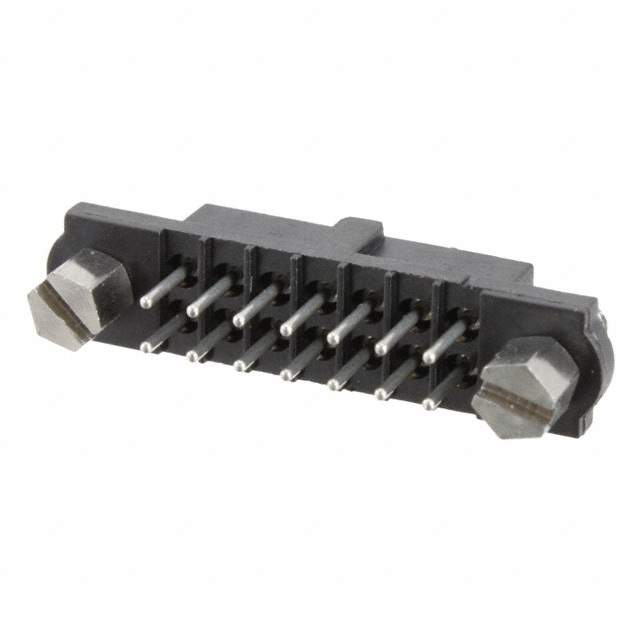

M80-4001442 Real Image
Same model may have multiple batches, images only for reference.

M80-4001442

Part No M80-4001442
Manufacturer Harwin Inc.
Catalog Rectangular Connectors
Description CONN RCPT 14POS 0.079 GOLD PCB
Datasheet
M80-4001442 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 13 Weeks
Features 14 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
Manufacturer Harwin Inc.
Series Datamate J-Tek
Package Tube
Operating Temperature Range -55°C ~ 125°C
Mounting Through Hole
Family Name M80-400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number M80-4T11442F1-ND, M80-4T11442F1, 952-1886, M804001442
Quantity per package 11
Popularity High
Supply and Demand Status Balance
Win Source Part Number 924972-M80-4001442
Ultra Librarian 3D Model Ultra Librarian M80-4001442 CAD Model

Description

The Datamate J-Tek series connector from Harwin Inc. is a 14-position receptacle connector with a 0.079" (2.00mm) through hole gold.

  • Positions: 14
  • Pitch: 0.079" (2.00mm)
  • Mounting: Through hole
  • Temperature Range: -55°C to 125°C
  • Package: Tube
  • Family Name: M80-400
  • Category: Connectors
  • Supply and Demand Status: Balanced
  • Quantity per Package: 11
  • MSL Level: 1 (unlimited)
  • Estimated Production Lead Time: 13 weeks
  • REACH Status: REACH unaffected
  • HTSUS: 8536.69.4040
