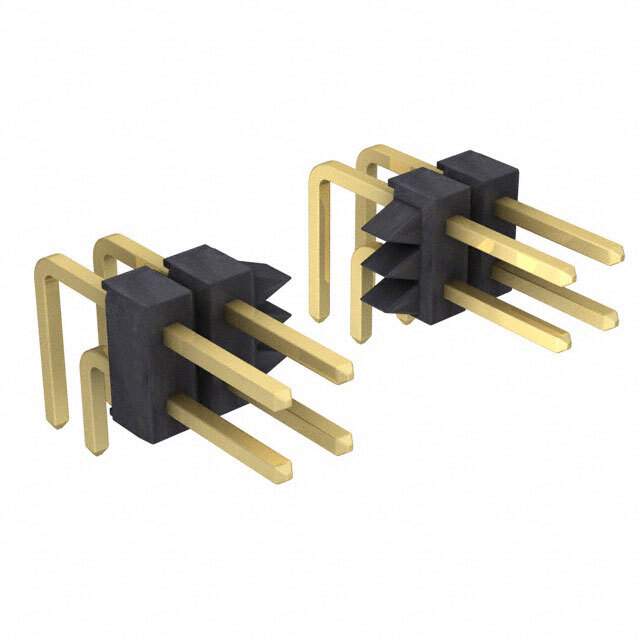

M20-9952045 Real Image
Same model may have multiple batches, images only for reference.

M20-9952045

Part No M20-9952045
Manufacturer Harwin Inc.
Catalog Circular Connectors - Housings
Description CONN HEADER R/A 40POS 2.54MM / Connector Header Through Hole, Right Angle 40 position 0.100" (2.54mm)
Datasheet
M20-9952045 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Harwin Inc.
Series M20
Package Bulk
Connector Type Header, Cuttable
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 40
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.118" (3.00mm)
Insulation Height 0.200" (5.08mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Material Brass
Insulation Material Polyamide (PA6T), Nylon 6T
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A per Contact
Base Product Number M20-995
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 100
Win Source Part Number 1109356-M20-9952045
Ultra Librarian 3D Model Ultra Librarian M20-9952045 CAD Model

Description

The M20 series male pin header connector is a 40-position, two-row connector with a pitch of 0.100 inches (2.54mm) and is designed for board-to-board or cable-to-board applications.

  • Positions: 40
  • Rows: 2
  • Pitch: 0.100 inches (2.54mm)
  • Insulation Material: Polyamide (PA6T) and nylon 6T
  • Flammability Rating: UL94 V-0
  • Fastening: Push-pull
  • Mounting: Right-angle through-hole
  • Shrouding: Unshrouded
  • Contact Material: Brass
  • Contact Finish: Gold
  • Contact Length: 0.240 inches (6.10mm)
  • Temperature Range: -40°C to 105°C
  • Current Rating: 3A per contact
  • Package: Bulk
  • Standard Package: 100
