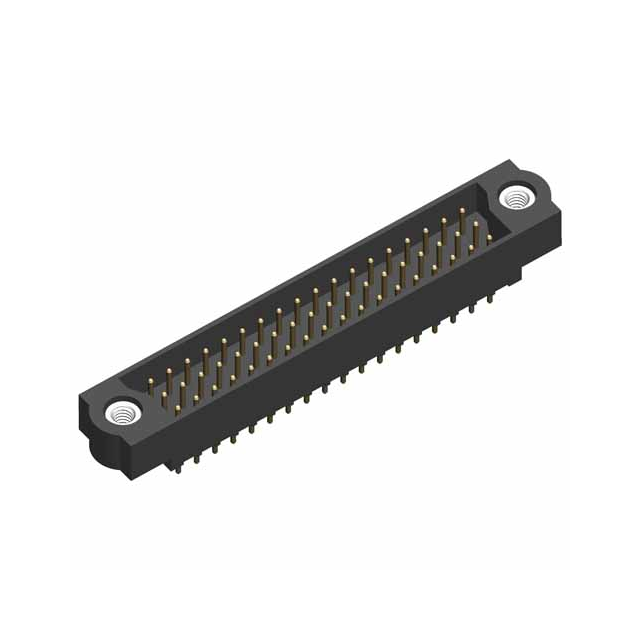

Same model may have multiple batches, images only for reference.

M83-LMT1M1N54-0000-000

Name: M83-LMT1M1N54-0000-000
Brand: Harwin Inc.
SKU: 1332957
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	M83-LMT1M1N54-0000-000
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 54POS 2MM / Connector Header Through Hole 54 position 0.079" (2.00mm)
Datasheet	M83-LMT1M1N54-0000-000 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Harwin Inc.
Packaging	Bag
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	54
Number of Rows	3
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole
Termination	Solder
Fastening Type	Threaded
Contact Length - Post	0.130" (3.30mm)
Insulation Height	0.238" (6.05mm)
Contact Shape	Circular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	29.5µin (0.75µm)
Contact Material	Brass
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Features	Mating Flange
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2.2A per Contact
Voltage Rating	120V
Mated Stacking Heights	10.65mm, 12.85mm
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	15
Win Source Part Number	1332957-M83-LMT1M1N54-0000-000
Ultra Librarian 3D Model	Ultra Librarian M83-LMT1M1N54-0000-000 CAD Model

Alternative Products

Description

The Harwin Inc. M83-LMT1M1N54-0000-000 is a header connector with 54 positions and a mating flange.

Pitch: 0.079” (2.00mm)
Applications: Board-to-Board or Cable
Current Rating: 2.2A per Contact
Voltage Rating: 120V
Insulation Material: Polyphenylene Sulfide (PPS), Glass-Filled
Material Flammability Rating: UL94 V-0
Shrouding: 4-Wall
Package: Bag of 15 pieces
Operating Temperature Range: -55°C to 125°C
