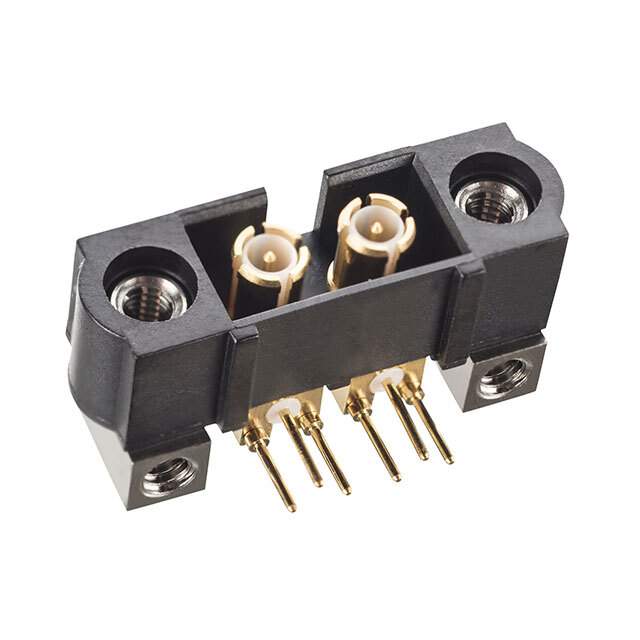

M80-MH313M5-02

Name: M80-MH313M5-02
Brand: Harwin Inc.
SKU: 1338315
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	M80-MH313M5-02
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 2POS 4MM / Connector Header Through Hole, Right Angle 2 (Coax) position 0.157" (4.00mm)
Datasheet	M80-MH313M5-02 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Harwin Inc.
Series	Datamate Coax
Package	Tube
Connector Type	Header
Contact Type	Male Pin, Coaxial
Pitch - Mating	0.157" (4.00mm)
Number of Positions	2 (Coax)
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Threaded
Insulation Height	0.220" (5.60mm)
Contact Shape	Circular
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Insulation Material	Polyphenylene Sulfide (PPS) , Glass Filled
Features	Mating Flange, Mounting Flange
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Base Product Number	M80-MH3
Standard Package	14
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1338315-M80-MH313M5-02
Ultra Librarian 3D Model	Ultra Librarian M80-MH313M5-02 CAD Model

Alternative Products

Description

The Datamate Coax is a series of rectangular connectors that are suitable for headers, male pins applications.

Series: Datamate Coax
Connector Type: Header
Contact Type: Male Pin, Coaxial
Number of Positions: 2 (Coax)
Positions Loaded: All
Number of Rows: Single
Fastening Type: Threaded
Termination: Solder
Features: Mating Flange, Mounting Flange
Packaging: Tube
Contact Material: Copper Alloy
Shrouded: 4 Wall
Pitch Mating: 0.157" (4.00mm)
Contact Finish - Mating: Gold
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Mounting Type: Through Hole, Right Angle
Operating Temperature: -55°C ~ 125°C
Manufacturer: Harwin Inc.
