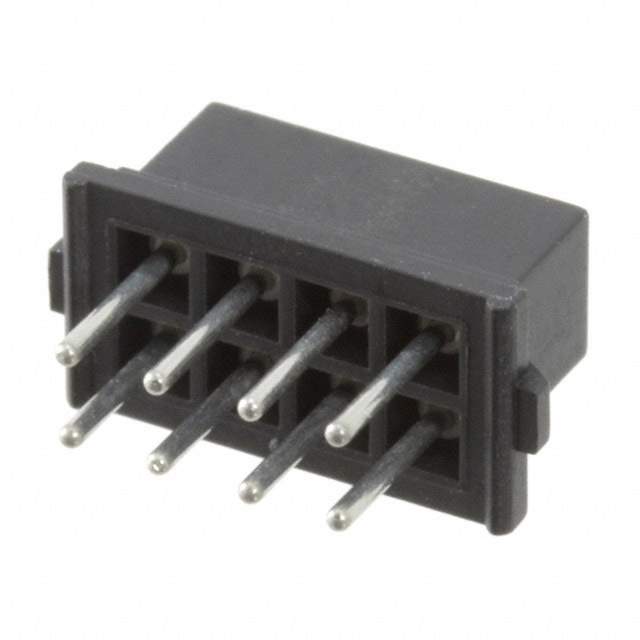

M80-8500842

Name: M80-8500842
Brand: Harwin Inc.
SKU: 1332892
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	M80-8500842
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 8POS 0.079 GOLD PCB / 8 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
Datasheet	M80-8500842 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Manufacturer	Harwin Inc.
Packaging	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	8
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting	Through Hole
Termination	Solder
Fastening Type	Locking Ramp
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	12.0µin (0.30µm)
Insulation Color	Black
Insulation Height	0.202" (5.14mm)
Contact Length - Post	0.118" (3.00mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	7.23mm, 7.85mm
Voltage Rating	800V
Applications	Automotive, General Purpose, Military
Insulation Material	Polyamide (PA46), Nylon 4/6, Glass Filled
Contact Shape	Circular
Contact Material	Beryllium Copper
Contact Finish Thickness - Post	157.5µin (4.00µm)
Base Product Number	M80-850
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	M808500842,952-2078
Standard Package	21
Win Source Part Number	1332892-M80-8500842
Ultra Librarian 3D Model	Ultra Librarian M80-8500842 CAD Model

Alternative Products

Description

The M80-8500842 is a connector manufactured by Harwin Inc.

Win Source Part Number: 1332892-M80-8500842
Style: Board to Board or Cable
Positions: 8
Contact Type: Female Sockets
Fastening Type: Locking Ramp
Voltage Rating: 800V
RoHS Compliant: Yes
Temperature Range: -55°C ~ 125°C
Applications: Automotive, General Purpose, Military
Demand: High
Supply: Limited
