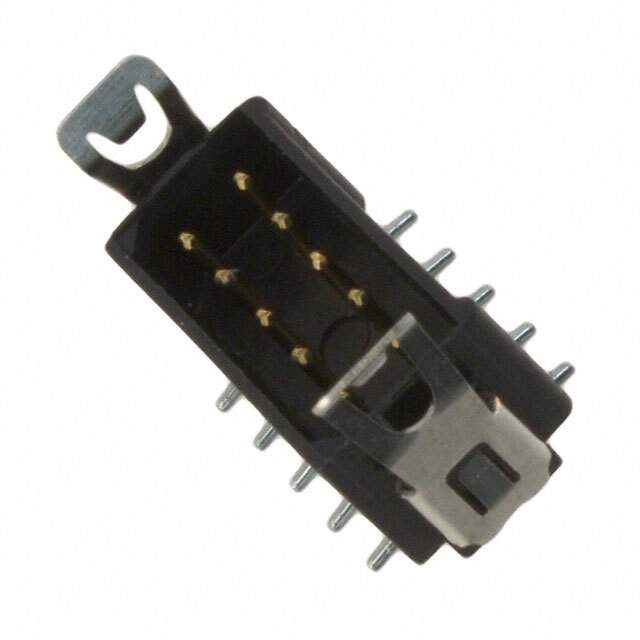

M80-8281042

Name: M80-8281042
Brand: Harwin Inc.
SKU: 1332453
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	M80-8281042
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 10POS 2MM / Connector Header Surface Mount 10 position 0.079" (2.00mm)
Datasheet	M80-8281042 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Harwin Inc.
Packaging	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting	Surface Mount
Termination	Solder
Fastening Type	Latch Lock
Insulation Height	0.205" (5.20mm)
Contact Shape	Circular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	29.5µin (0.75µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2.2A
Voltage Rating	800V
Mated Stacking Heights	7.85mm, 8.45mm, 10.5mm, 14.25mm
Contact Finish Thickness - Post	118.1µin (3.00µm)
Base Product Number	M80-828
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	M808281042,952-1163-5
Standard Package	18
Win Source Part Number	1332453-M80-8281042
Ultra Librarian 3D Model	Ultra Librarian M80-8281042 CAD Model

Description

The Harwin Inc. M80-8281042 is a male pin header connector that is designed to provide a reliable connection between printed circuit boards.

Manufacturer: Harwin Inc.
Type: Male Pin Header Connector
Positions: 10
Rows: 2
Positions Loaded: All
Voltage Rating: 800V
Current Rating: 2.2A
Fastening Type: Latch Lock
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Shrouding: Shrouded with 4 Walls
Contact Shape: Circular
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Contact Finish Thickness - Post: 118.1µin (3.00µm)
Temperature Range: -55°C to 125°C
Mounting Style: Surface Mount
Pitch: 0.079" (2.00mm)
RoHS3 Compliant: Yes
Standard Package: 18
