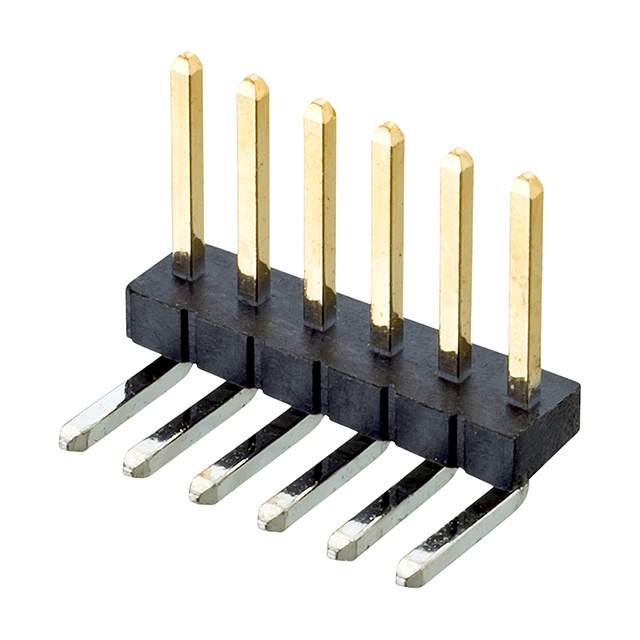

Same model may have multiple batches, images only for reference.

M50-3930642

Name: M50-3930642
Brand: Harwin Inc.
SKU: 1345592
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	M50-3930642
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 6POS 1.27MM / Connector Header Through Hole, Right Angle 6 position 0.050" (1.27mm)
Datasheet	M50-3930642 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Harwin Inc.
Series	Archer M50
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	6
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.157" (4.00mm)
Contact Length - Post	0.094" (2.40mm)
Insulation Height	0.039" (1.00mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA9T) , Nylon 9T
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	1A per Contact
Contact Finish Thickness - Post	98.4µin (2.50µm)
Base Product Number	M50-393
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1345592-M50-3930642
Ultra Librarian 3D Model	Ultra Librarian M50-3930642 CAD Model

Description

The Harwin Inc. Archer M50 series male pin header is a high-quality connector that features 6 positions, a pitch of 0.050" (1.27mm), and a current rating of 1A per contact.

Positions: 6
Pitch: 0.050" (1.27mm)
Current Rating: 1A per contact
Mounting Type: through-hole
Shrouding: right-angle
Contact Material: brass
Contact Finish: gold
Manufacturer: Harwin Inc.
Series: Archer M50
