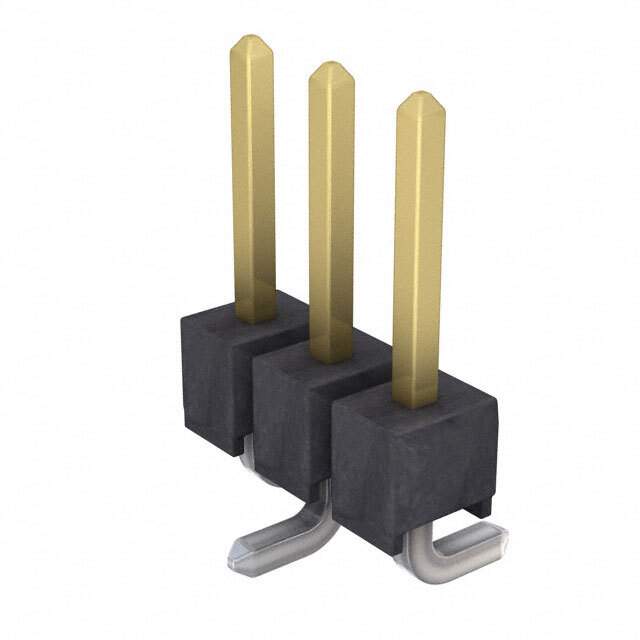

M20-8770342

Name: M20-8770342
Brand: Harwin Inc.
SKU: 1332496
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	M20-8770342
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 3POS 2.54MM / Connector Header Surface Mount 3 position 0.100" (2.54mm)
Datasheet	M20-8770342 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Harwin Inc.
Packaging	Bulk
Connector Type	Header, Cuttable
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	3
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.228" (5.80mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA6T), Nylon 6T
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A per Contact
Mated Stacking Heights	11.63mm, 12.23mm, 12.63mm, 18.13mm
Base Product Number	M20-877
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	952-1951,M208770342
Standard Package	1,000
Win Source Part Number	1332496-M20-8770342
Ultra Librarian 3D Model	Ultra Librarian M20-8770342 CAD Model

Description

The Harwin Inc. 1332496-M20-8770342 is a male header connector with 3 positions and a pitch of 0.100" (2.54mm).

Cuttable: yes
Contact: male pins
Contact Material: brass
Mating Finish: gold
Insulation Material: polyamide (PA6T) and nylon 6T
Insulation Color: black
Mounting: surface mountable
Temperature Range: -40°C to 105°C
Current Rating: 3A per contact
Applications: board to board or cable
