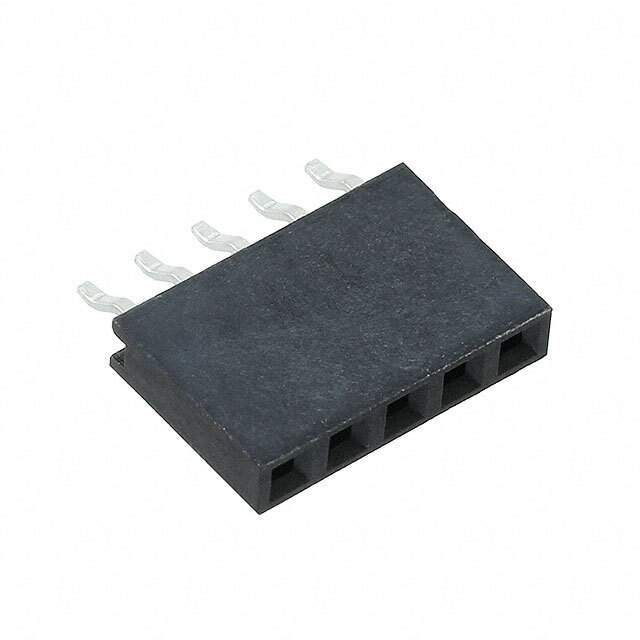

M20-7910542R

Name: M20-7910542R
Brand: Harwin Inc.
SKU: 1351536
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	M20-7910542R
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 5POS 0.1 GOLD SMD R/A / 5 Position Receptacle Connector 0.100" (2.54mm) Surface Mount, Right Angle Gold
Datasheet	M20-7910542R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Harwin Inc.
Series	M20
Package	Tape & Reel
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board
Number of Positions	5
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.59µin (0.015µm)
Insulation Color	Black
Insulation Height	0.098" (2.50mm)
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	3A
Applications	General Purpose
Insulation Material	Polyamide (PA9T) , Nylon 9T, Glass Filled
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	80.0µin (2.03µm)
Base Product Number	M20-791
Standard Package	1,300
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1351536-M20-7910542R
Ultra Librarian 3D Model	Ultra Librarian M20-7910542R CAD Model

Alternative Products

Description

The Harwin Inc. M20-7910542R is a high-quality rectangular connector designed for board-to-board applications.

Pitch: 0.100" (2.54mm)
Connector Type: Receptacle
Mounting: Right-Angle
Current Rating: 3A
Temperature Range: -40°C to 105°C
Contact Finish: Gold (mating), Tin (post)
Contact Finish Thickness: 0.59µin (0.015µm) mating
Insulation Material: Polyamide (PA9T), Nylon 9T, Glass Filled
Insulation Height: 0.098" (2.50mm)
