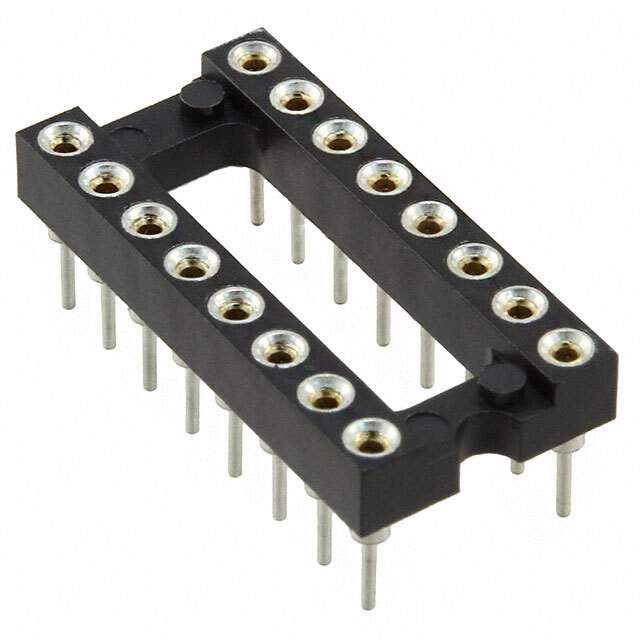

D2816-42

Name: D2816-42
Brand: Harwin Inc.
SKU: 772290
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	D2816-42
Manufacturer	Harwin Inc.
Catalog	Sockets for ICs, Transistors
Description	CONN IC DIP SOCKET 16POS GOLD / Conn DIP Socket SKT 16 POS 2.54mm Solder ST Thru-Hole Tube
Datasheet	D2816-42 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Harwin Inc.
Series	D2
Packaging	Tube
Type	DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid)	16 (2 x 8)
Pitch - Mating	0.100" (2.54mm)
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material - Mating	Beryllium Copper
Mounting Style	Through Hole
Features	Open Frame
Termination	Solder
Pitch - Post	0.100" (2.54mm)
Contact Finish - Post	Tin
Contact Finish Thickness - Post	196.8μin (5.00μm)
Contact Material - Post	Brass
Housing Material	Plastic
Operating Temperature Range	-55°C ~ 125°C
Termination Post Length	0.126" (3.20mm)
Material Flammability Rating	UL94 V-0
Current Rating	1A
Contact Resistance	10 mOhm
Win Source Part Number	772290-D2816-42
Popularity	Medium
Supply and Demand Status	Balance
Family Name	D28
Introduction Date	May 09, 2005
ECCN	EAR99
Country of Origin	United Kingdom
Halogen Free	Compliant
Estimated EOL Date	2025
Ultra Librarian 3D Model	Ultra Librarian D2816-42 CAD Model

Description

The 772290-D2816-42 is a 16-pin DIP connector from Harwin Inc..

Row Spacing: 0.3" (7.62mm)
Mounting Type: Through Hole
Operating Temperature Range: -55°C ~ 125°C
Material: Plastic
Flammability Rating: UL94 V-0
Halogen Free: Yes
Contact Finish: Gold
Contact Material: Beryllium Copper
Pitch: 0.100" (2.54mm)
Termination: Solder
Current Rating: 1A
Contact Resistance: 10 mOhm
Family Name: D28 (D2 Series)
ECCN: EAR99
Estimated EOL Date: 2025
Supply and Demand: Balanced
Reliability: Reliable
