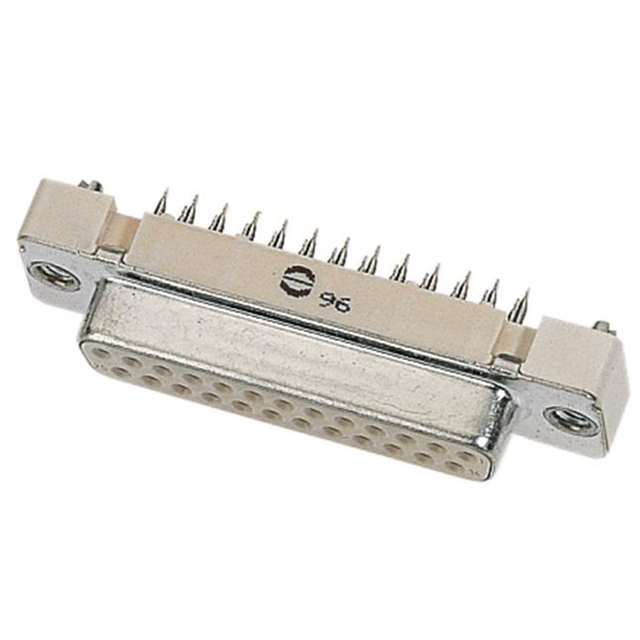

09664546513 Real Image
Same model may have multiple batches, images only for reference.

09664546513

Part No 09664546513
Manufacturer HARTING
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 37P VERT PRESS / 37 Position D-Sub Receptacle, Female Sockets Connector
Datasheet
09664546513 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr HARTING
Package Bulk
Product Status Obsolete
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 37
Number of Rows 2
Mounting Type Through Hole
Shell Size, Connector Layout 4 (DC, C)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Press-Fit
Shell Material, Finish Steel
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6.5A
Features Board Lock
Contact Form Stamped
Dielectric Material Liquid Crystal Polymer (LCP)
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 125°C
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1337617-09664546513
Ultra Librarian 3D Model Ultra Librarian 09664546513 CAD Model

Description

The 1337617-09664546513 is a 37-position D-Sub connector assembly with female sockets and a board lock feature.

  • Contact Form: Stamped
  • Shell Material, Finish: Steel
  • Mounting Type: Through-Hole
  • Application: D-Sub
  • Operating Temperature Range: -55°C ~ 125°C
  • REACH: Unaffected
  • Package: Bulk
  • Standard Package: 50
  • Manufacturer: HARTING
  • Status: Obsolete
