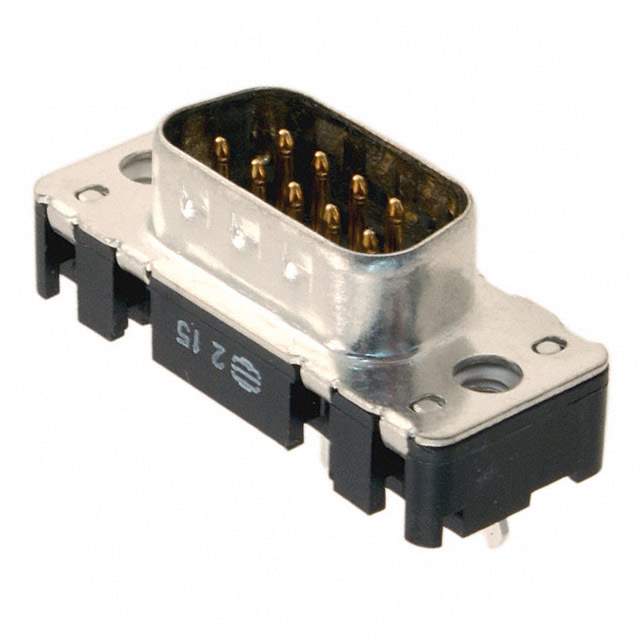

09651616712 Real Image
Same model may have multiple batches, images only for reference.

09651616712

Part No 09651616712
Manufacturer HARTING
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 9POS VERT SLDR / 9 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Manufacturer HARTING
Packaging Tray
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Mounting Through Hole
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6.5A
Features Board Lock, Grounding Indents
Contact Form Stamped
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 125°C
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 1195-2474,9651616712
Standard Package 100
Win Source Part Number 1333190-09651616712
Ultra Librarian 3D Model Ultra Librarian 09651616712 CAD Model

Description

This D-sub connector assembly is a product of HARTING, a reputable manufacturer of electronic components.

  • Connector Type: Plug
  • Contact Gender: Male Pins
  • Contact Type: Signal
  • Number of Rows: Two
  • Number of Positions: 9
  • Mounting Style: Through-Hole
  • Shell Material: Steel
  • Dielectric Material: Polybutylene Terephthalate (PBT), Polyester, and Glass Filled
  • Temperature Range: -55°C to 125°C
  • Flammability Rating: UL94 V-0
  • Current Rating: 6.5A
  • ROHS3 Compliant: Yes
