Same model may have multiple batches, images only for reference.

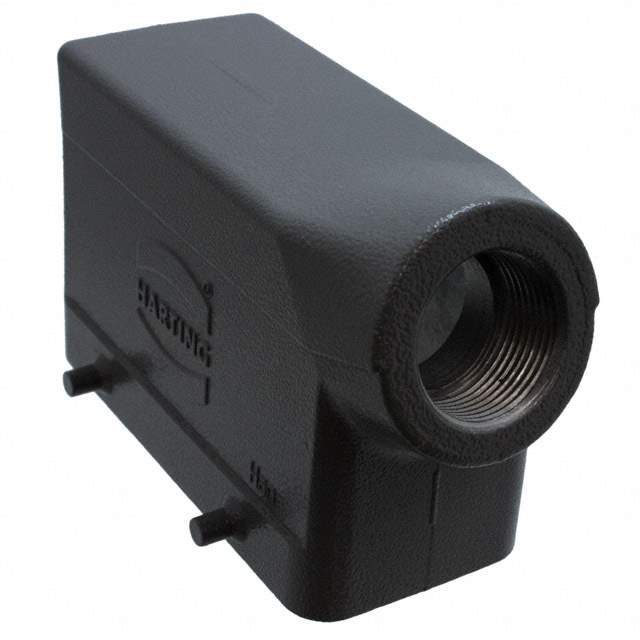

19300161521 Real Image
Same model may have multiple batches, images only for reference.

19300161521

Part No 19300161521
Manufacturer HARTING
Catalog Heavy Duty Connectors
Description CONN HOOD SIDE ENTRY SZ16B M25
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Heavy Duty Connectors - Heavy Duty Connector Housings, Hoods, Bases
Mfr HARTING
Series Han® B
Package Bulk
Product Status Active
Connector Type Hood
Style Side Entry
Size 16B
Lock Location Locking Clip (2) on Base Bottom
Thread Size M25
Size / Dimension 3.681" L x 1.693" W x 2.461" H (93.50mm x 43.00mm x 62.50mm)
Housing Color Gray
Ingress Protection IP65 - Dust Tight, Water Resistant
Housing Material Aluminum, Die Cast
Housing Finish Powder Coated
Temperature Range - Operating -40°C ~ 125°C
Base Product Number 19300161
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 847294-19300161521
Ultra Librarian 3D Model Ultra Librarian 19300161521 CAD Model

Description

The 847294-19300161521 is a gray side entry hood from HARTING's Han® B series. It is designed for heavy-duty connector housings and provides IP65-rated dust tight and water-resistant protection.

  • Housing Material: Aluminum die-cast
  • Finish: Powder-coated
  • Size: 3.681" L x 1.693" W x 2.461" H (93.50mm x 43.00mm x 62.50mm)
  • Thread Size: M25
  • Operating Temperature: -40°C to 125°C
  • ECCN: EAR99
  • HTSUS Code: 8538.90.8180
  • Product Status: Active
