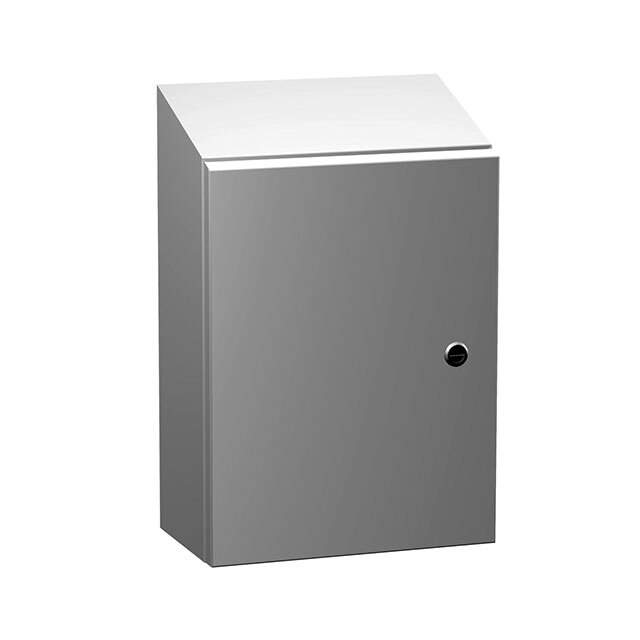

ST16168LG Real Image
Same model may have multiple batches, images only for reference.

ST16168LG

Part No ST16168LG
Manufacturer Hammond Manufacturing
Catalog Boxes, Enclosures, Racks
Description BOX STEEL GRAY 18.900"L X 16"W / Box Metal, Steel Gray Hinged Door, Slanted Top 18.900" L x 16.000" W (480.06mm x 406.40mm) X 8.000" (203.20mm)
Datasheet
ST16168LG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Boxes, Enclosures, Racks>Boxes
Mfr Hammond Manufacturing
Series Eclipse
Package Box
Container Type Box
Dimension 18.900" L x 16.000" W (480.06mm x 406.40mm)
Height 8.000" (203.20mm)
Area (L x W) 302in² (1948cm²)
Design Hinged Door, Slanted Top
Material Metal, Steel
Color Gray
Thickness 16 Gauge
Ratings IP66, NEMA 3R,4,12,13, UL-508
Weight 26 lbs (11.8 kg)
Base Product Number ST16168
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 7310.29.0065
Standard Package 1
Win Source Part Number 962802-ST16168LG
Ultra Librarian 3D Model Ultra Librarian ST16168LG CAD Model

Description

The Eclipse series from Hammond Manufacturing is a series of metal boxes that are designed for use in electronic enclosures.

  • Series: Eclipse
  • Model: ST16168LG
  • Design: Slanted top and a hinged door
  • Thickness: 16 gauge
  • Height: 8.000" (203.20mm)
  • Weight: 26 lbs (11.8 kg)
  • Area: 302in² (1948cm²)
  • Rating: IP66, NEMA 3R,4,12,13, UL-508
  • Color: Gray
  • Packaging: Container type
  • Alternative Part Cross-Reference: EN4SD20168GY, EN4SD16168LG, and EN4SD24168LG
  • ECCN: EAR99 compliant
  • REACH: Unaffected
