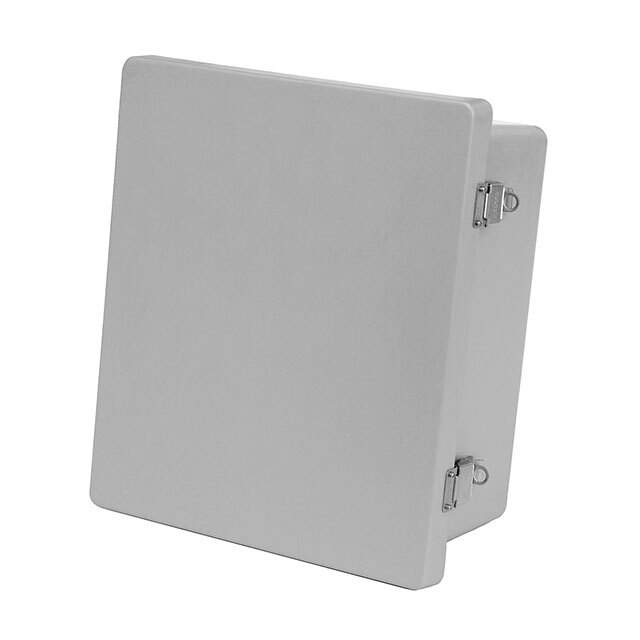

PJ1086 Real Image
Same model may have multiple batches, images only for reference.

PJ1086

Part No PJ1086
Manufacturer Hammond Manufacturing
Catalog Boxes, Enclosures, Racks
Description BOX FIBERGLS 11.770"L X 9.9"W / Box Fiberglass/Polyester Gray Cover Included 11.770" L x 9.900" W (298.96mm x 251.46mm) X 6.470" (164.34mm)
Datasheet
PJ1086 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Boxes, Enclosures, Racks>Boxes
Mfr Hammond Manufacturing
Series PJ
Package Box
Container Type Box
Dimension 11.770" L x 9.900" W (298.96mm x 251.46mm)
Height 6.470" (164.34mm)
Area (L x W) 117in² (755cm²)
Design Cover Included
Material Fiberglass/Polyester
Color Gray
Features PCB Supports
Ratings IP66, NEMA 1,2,3,4,4X,12,13, UL-508
Weight 6 lbs (2.7 kg)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 3923.10.9000
Standard Package 1
Win Source Part Number 1001464-PJ1086
Ultra Librarian 3D Model Ultra Librarian PJ1086 CAD Model

Description

The PJ1086 from Hammond Manufacturing is a high-quality fiberglass/polyester enclosure designed for use in a variety of applications.

  • Series: PJ
  • Color: Gray
  • Ratings: IP66, NEMA 1,2,3,4,4X,12,13, and UL-508
  • Package: Box
  • Standard Package: 1
  • Thickness: -
  • Height: 6.470" (164.34mm)
  • Weight: 6 lbs (2.7 kg)
  • Container Type: Box
  • Dimensions: 11.770" L x 9.900" W (298.96mm x 251.46mm)
  • Area: 117in² (755cm²)
