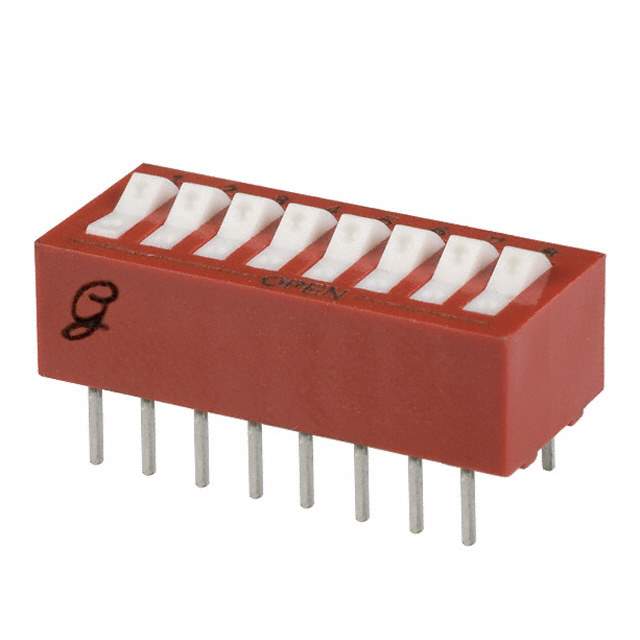

76SB08T Real Image
Same model may have multiple batches, images only for reference.

76SB08T

Part No 76SB08T
Manufacturer Grayhill Inc.
Catalog DIP Switches
Description SWITCH ROCKER DIP SPST 150MA 30V / Dip Switch SPST 8 Position Through Hole Rocker Actuator 150mA 30VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Manufacturer Grayhill Inc.
Packaging Tube
Circuit SPST
Number of Positions 8
Current Rating (Amps) 150mA
Voltage Rating 30VDC
Actuator Type Rocker
Actuator Level Raised
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.315" (8.00mm)
Mounting Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -40°C ~ 85°C
Body Material Thermoplastic
Length 0.880" (22.35mm)
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Base Product Number 76SB
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Part Number GH7177
Standard Package 12
Win Source Part Number 1323835-76SB08T
Ultra Librarian 3D Model Ultra Librarian 76SB08T CAD Model

Description

The Grayhill Inc. 1323835-76SB08T is a DIP switch that has eight positions and a pitch of 0.100 inches.

  • Termination Style: PC Pin
  • Contact Material: Copper Alloy
  • Voltage Rating: 30VDC
  • Electrical and Mechanical Life: 2,000 cycles
  • Packaging: Tube
  • Mounting Style: Through-Hole
  • Operating Temperature Range: -40°C to 85°C
  • ROHS: Compliant
  • Ideal for: Telecommunications and Industrial Equipment
