Same model may have multiple batches, images only for reference.

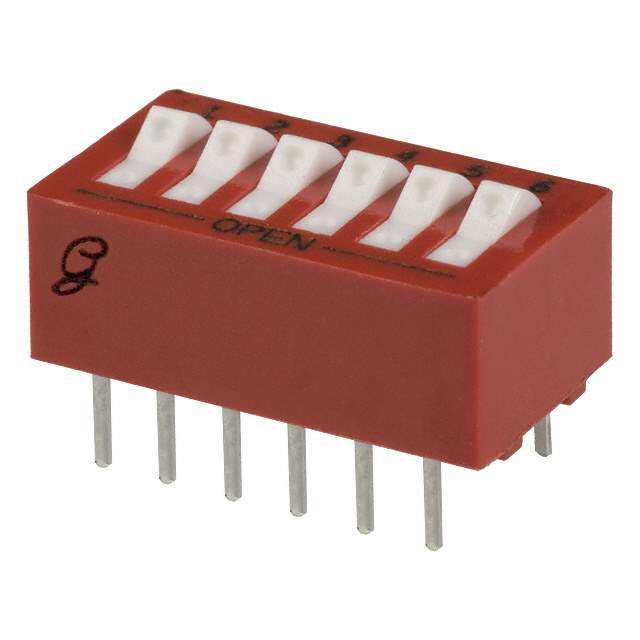

76SB06T Real Image
Same model may have multiple batches, images only for reference.

76SB06T

Part No 76SB06T
Manufacturer Grayhill Inc.
Catalog DIP Switches
Description SWITCH ROCKER DIP SPST 150MA 30V / Dip Switch SPST 6 Position Through Hole Rocker Actuator 150mA 30VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr Grayhill Inc.
Series 76
Package Tube
Circuit SPST
Number of Positions 6
Current Rating (Amps) 150mA
Voltage Rating 30VDC
Actuator Type Rocker
Actuator Level Raised
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.315" (8.00mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm) , Full
Washable No
Temperature Range - Operating -40°C ~ 85°C
Body Material Thermoplastic
Length 0.680" (17.27mm)
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Base Product Number 76SB
Standard Package 15
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1350342-76SB06T
Ultra Librarian 3D Model Ultra Librarian 76SB06T CAD Model

Description

The 76SB06T DIP switch is a high-quality and reliable switch for a range of applications from Grayhill Inc..

  • Number of Positions: 6
  • Pitch: 0.100" (2.54mm)
  • Termination Style: PC Pin
  • Contact Finish: Gold
  • Voltage Rating: 30VDC
  • Current Rating: 150mA
  • ECCN: EAR99
  • Operating Temperature: -40°C to 85°C
  • Features: Sealed
  • Washable: No
  • Mechanical Life: 2,000 Cycles
  • Packaging: Tube
