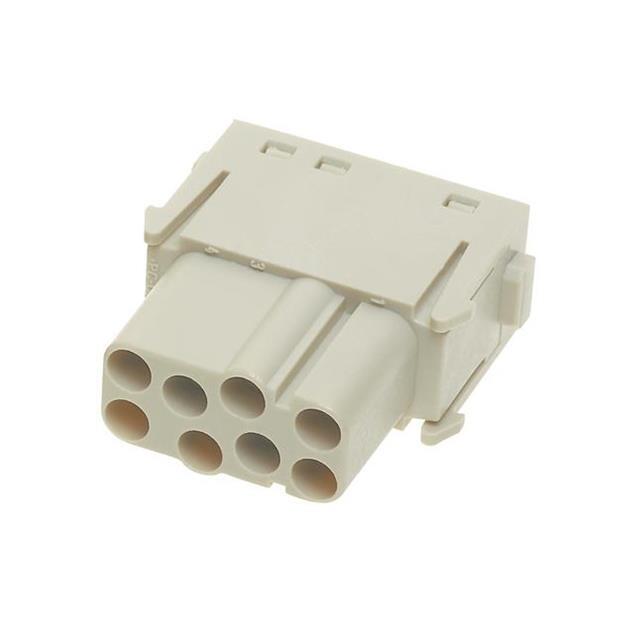

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, InterconnectsHeavy Duty ConnectorsHeavy Duty Connector Inserts, Modules
Manufacturer HARTING
Series Han? EE
Packaging Bulk
Part Status Active
Connector Type Module without Contacts
Gender Female
Number of Positions 8
Termination Style Crimp
Voltage Rating 400V
Current Rating (Amps) 16A
Contact Type Han?
Operating Temperature -40°C ~ 125°C
Color Gray
Housing Material Polycarbonate (PC)
Material Flammability Rating UL94 V-0
Base Product Number 09140083
Ultra Librarian 3D Model Ultra Librarian 09140083101 CAD Model
