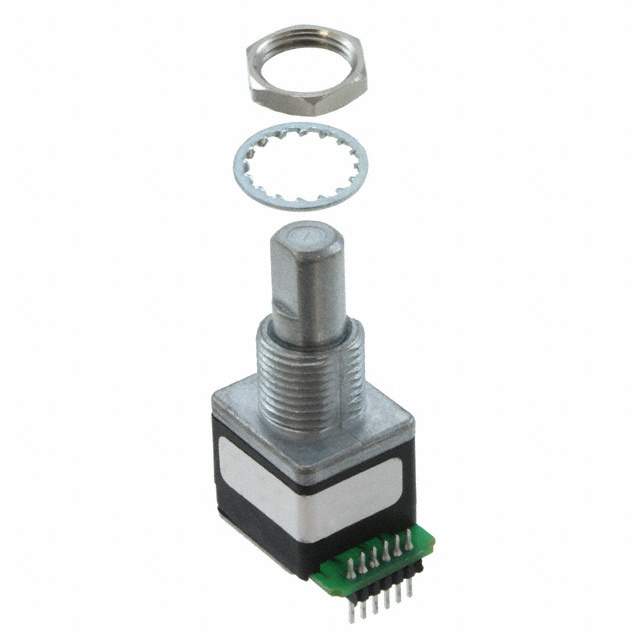

62AG11-L0-P Real Image
Same model may have multiple batches, images only for reference.

62AG11-L0-P

Part No 62AG11-L0-P
Manufacturer Grayhill Inc.
Catalog Encoders
Description OPT ENCODER, 32 POS W/O PB & HDR / Optical Encoder Rotary Incremental Flat 0.014(Avg)N.m Straight Digital Square Wave Through Hole PC Pin 8CPR
Datasheet
62AG11-L0-P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Grayhill Inc.
Series 62AG
Encoder Type Optical
Output Type Quadrature (Incremental)
Pulses per Revolution 32
Operating Supply Voltage 5V
Actuator Type 1/4" Dia Flatted End
Detent Yes
Built in Switch No
Mounting PCB, Through Hole
Orientation Vertical
Termination Style PC Pin
Rotational Life (Cycles Min) 1M
Win Source Part Number 775570-62AG11-L0-P
Popularity Medium
Supply and Demand Status Limited
Family Name 62AG
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian 62AG11-L0-P CAD Model

Description

The Grayhill Inc. 775570-62AG11-L0-P encoder.

  • Type: Optical
  • Output: Quadrature (incremental)
  • Actuator: 1/4" Dia Flatted End
  • Switch: No
  • Rotational Life: 1M cycles
  • Features: Detent
  • Voltage Supply: 5V
  • Termination: PC Pin
  • Mounting Type: Panel and PCB through-hole
  • Family: 62AG
