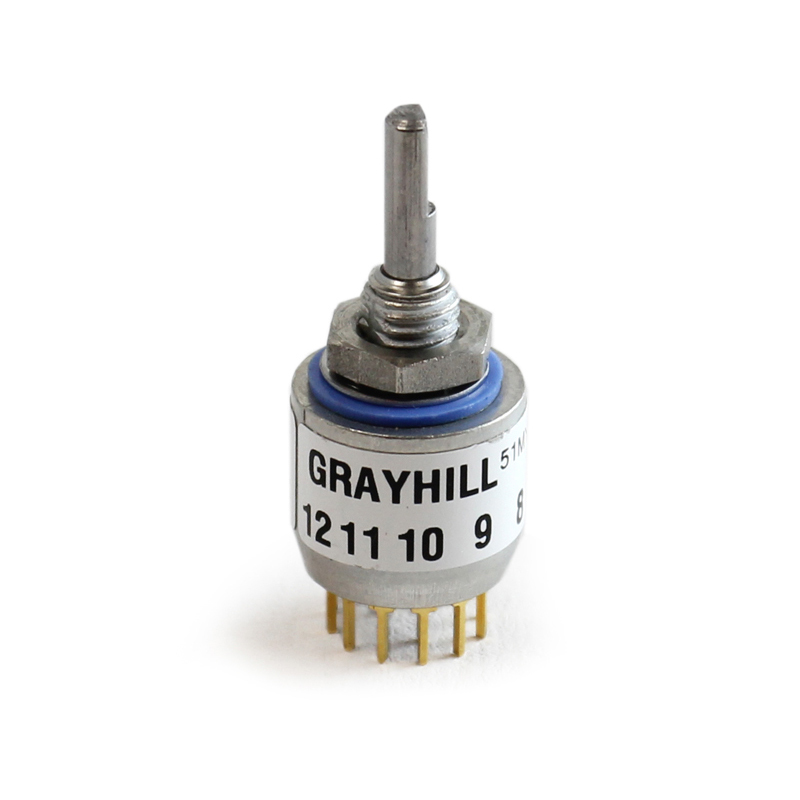

51PT22-01-1-16N Grayhill Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

51PT22-01-1-16N

Part No 51PT22-01-1-16N
Manufacturer Grayhill Inc.
Catalog Rotary Switches
Description SWITCH ROTARY 16POS 150MA 115V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Number of Positions 16
Index Stops Continuous
Number of Decks 1
Number of Poles per Deck 1
Circuit per Deck SP16T
Contact Timing Non-Shorting (BBM)
Current Rating (Amps) 150mA (AC), 200mA (DC)
Voltage Rating - AC 115 V
Voltage Rating - DC 28 V
Actuator Type Flatted (3.17mm Dia)
Actuator Length 9.53mm
Angle of Throw 22.5°
Contact Finish Gold
Mounting Type Panel Mount, Through Hole
Termination Style PC Pin
Features Process Sealed
Depth Behind Panel 14.63mm
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1559239-51PT22-01-1-16N
Ultra Librarian 3D Model Ultra Librarian 51PT22-01-1-16N CAD Model
