Same model may have multiple batches, images only for reference.

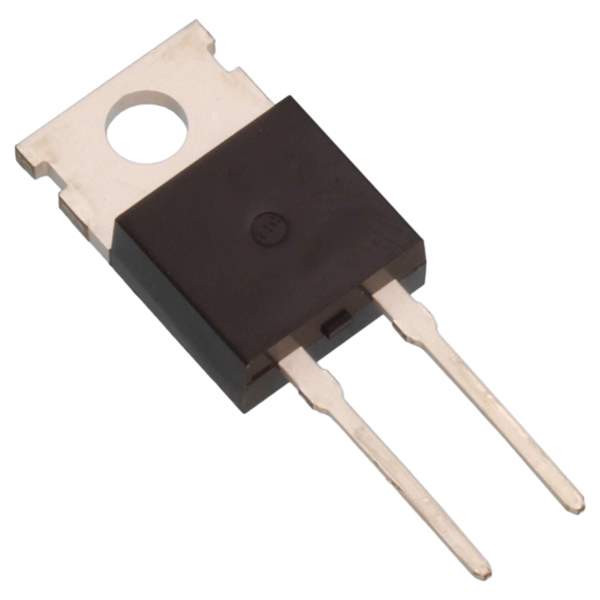

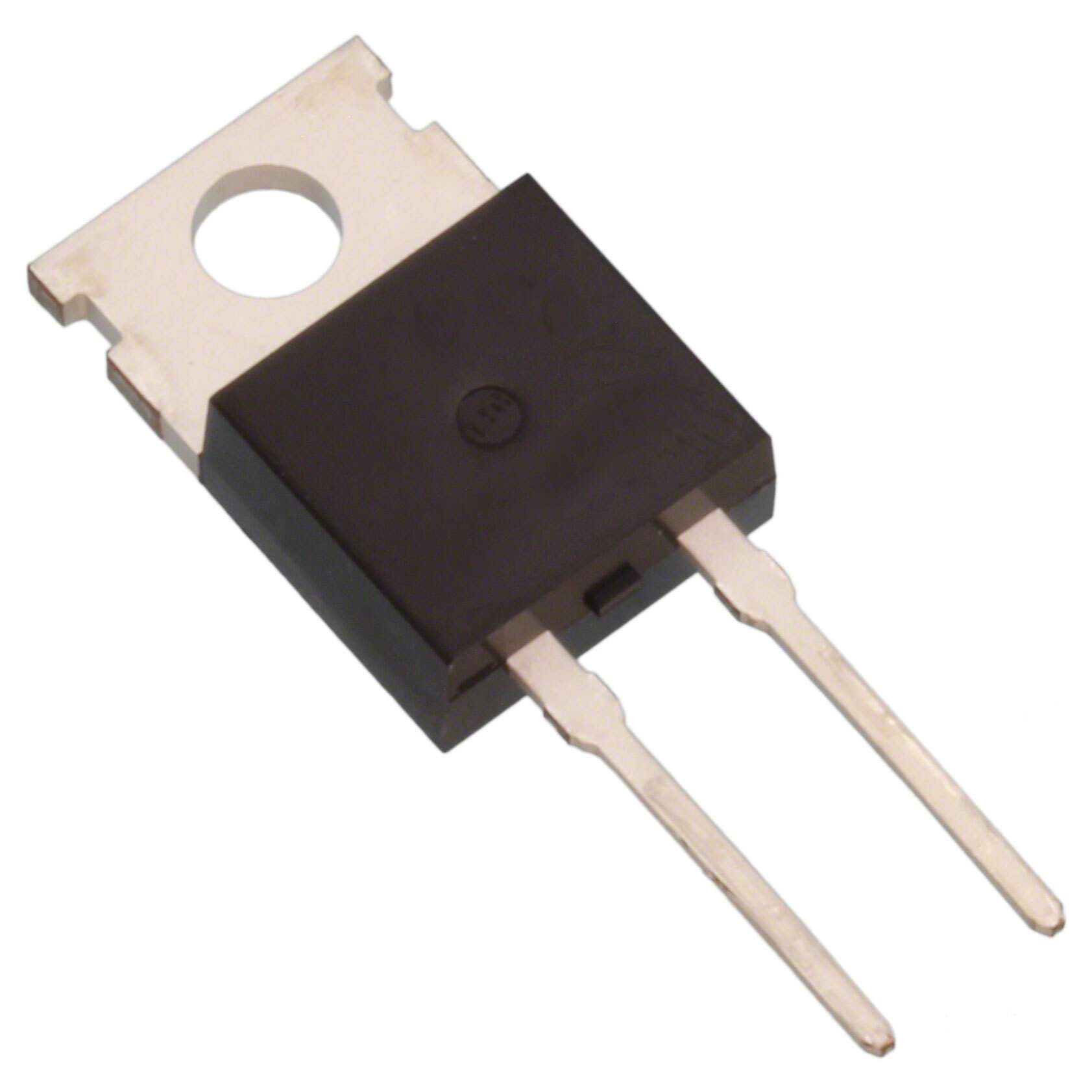

GP2D005A120A Real Image
Same model may have multiple batches, images only for reference.

GP2D005A120A

Part No GP2D005A120A
Manufacturer Global Power Technologies Group
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 1.2KV 5A TO220-2
Datasheet
GP2D005A120A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Global Power Technologies Group
Series Amp+
Packaging Tube
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Maximum) 1200V
Current - Average Rectified (Io) 5A (DC)
Voltage - Forward (Vf) (Maximum) @ If 1.8V @ 5A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0ns
Current - Reverse Leakage @ Vr 10μA @ 1200V
Capacitance @ Vr, F 317pF @ 1V, 1MHz
Mounting Style Through Hole
Package TO-220-2
Manufacturer Package TO-220-2
Operating Temperature - Junction -55°C ~ 175°C
Win Source Part Number 775065-GP2D005A120A
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian GP2D005A120A CAD Model

Description

Global Power Technologies Group GP2D005A120A is a silicon carbide Schottky diode that comes with a forward voltage of 1.8V at 5A and a reverse voltage of 1200V.

  • Current Rating: 5A (DC)
  • Capacitance: 317pF @ 1V, 1MHz
