Same model may have multiple batches, images only for reference.

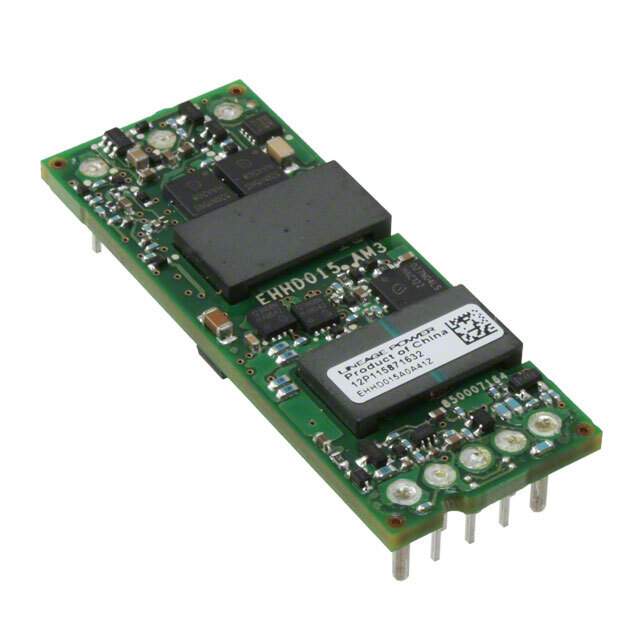

EHHD015A0A41Z Real Image
Same model may have multiple batches, images only for reference.

EHHD015A0A41Z

Part No EHHD015A0A41Z
Manufacturer GE Critical Power
Catalog Power Supplies Board Mount DCDC Converters
Description CONVERTER DC/DC 5.0V 15A OUT / Module DC-DC 24V/48VIN 1-OUT 5V 15A 8-Pin 1/8-Brick Tray
Datasheet
EHHD015A0A41Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer GE Critical Power
Series Hammerhead EHHD015A0A
Packaging Tray
Type Isolated Module
Number of Outputs 1
Input Voltage MIN 18V
Voltage Input MAX 75V
Voltage - Output 1 5V
Current - Output (Maximum) 15A
Power (Watts) 75W
Voltage - Isolation 2.25kV (2250V)
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, UVLO
Operating Temperature Range -40°C ~ 85°C
Efficiency 90.5%
Mounting Style Through Hole
Package 8-DIP Module, 1/8 Brick
Dimension 2.28" L x 0.90" W x 0.31" H (57.9mm x 22.9mm x 7.8mm)
Win Source Part Number 773699-EHHD015A0A41Z
Popularity Medium
Supply and Demand Status Limited
Family Name EHHD015A0A
Ultra Librarian 3D Model Ultra Librarian EHHD015A0A41Z CAD Model

Description

The GE Critical Power Hammerhead EHHD015A0A is an isolated module type power supply with a mounting style of through hole.

  • Module Type: Isolated
  • Mounting Style: Through Hole
  • Package: 8-DIP Module, 1/8 Brick
  • Operating Temperature Range: -40°C ~ 85°C
  • Features: Remote On/Off, OCP, OTP, OVP, UVLO
  • Applications: ITE (Commercial)
  • Power (Watts): 75W
  • Voltage Isolation: 2.25kV (2250V)
  • Number of Outputs: 1
  • Voltage Output 1: 5V
  • Efficiency: 90.5%
  • Family Name: EHHD015A0A
  • Category: Power Supplies - Board Mount
  • Dimension: 2.28" L x 0.90" W x 0.31" H (57.9mm x 22.9mm x 7.8mm)
  • Input Voltage Min: 18V
  • Input Voltage Max: 75V
  • Current Output (Maximum): 15A
  • Alternative Parts (Cross-Reference): VKA100MS05-1, PQ48050HKA20NYF, PQ48050HKA20NRF, PQ48050HKA20NKS
  • Supply and Demand Status: Limited
