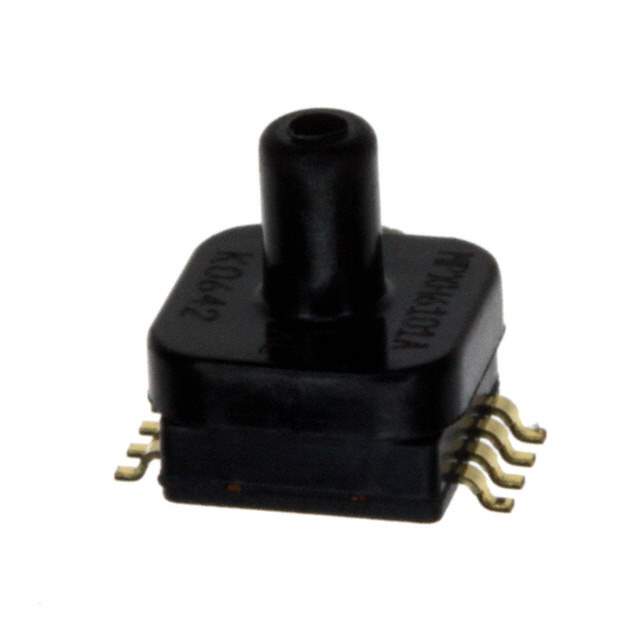

MPXHZ6400AC6T1 Freescale Semiconductor - NXP MPXHZ6400AC6T1 Real Image MPXHZ6400AC6T1 label picture MPXHZ6400AC6T1 label picture 2
Same model may have multiple batches, images only for reference.
MPXHZ6400AC6T1 Freescale Semiconductor - NXP MPXHZ6400AC6T1 Real Image MPXHZ6400AC6T1 label picture MPXHZ6400AC6T1 label picture 2
MPXHZ6400AC6T1 Freescale Semiconductor - NXP MPXHZ6400AC6T1 Real Image MPXHZ6400AC6T1 label picture MPXHZ6400AC6T1 label picture 2
Same model may have multiple batches, images only for reference.

MPXHZ6400AC6T1

Part No MPXHZ6400AC6T1
Manufacturer Freescale Semiconductor - NXP
Catalog Pressure Sensors, Transducers
Description SENSOR PRESSURE ABS AXIAL 8-SSOP
Datasheet
MPXHZ6400AC6T1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer NXP
Status Active
Pressure Type Absolute
Operating Pressure 2.9 PSI to 58.02 PSI (20 kPa to 400 kPa)
Output Type Analog Voltage
Output 0.2 V to 4.8 V
Accuracy ±1.5%
Supply Voltage - Operating 4.64 V to 5.36 V
Port Size Male - 0.13" (3.3mm) Tube
Port Style Barbless
Features Temperature Compensated
Termination Style PCB
Maximum Pressure 232.06 PSI (1600 kPa)
Temperature Range - Operating -40°C to 125°C
Case / Package 8-SSOP
Win Source Part Number 024330-MPXHZ6400AC6T1
Family Name MPXHZ6400A
Introduction Date July 29, 2005
ECCN EAR99
Country of Origin China, Philippines, Republic of Korea, Thailand
Halogen Free Compliant
Estimated EOL Date 2022
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Motor Drive & Control, Robotics, Sensing & Instrumentation, Medical
Ultra Librarian 3D Model Ultra Librarian MPXHZ6400AC6T1 CAD Model

Description

The NXP MPXHZ6400AC6T1 is a high accuracy temperature compensated pressure sensor.

  • Pressure Measurement: Absolute
  • Pressure Range: 2.9 PSI to 58.02 PSI (20 kPa to 400 kPa)
  • Output: Analog voltage 0.2 V to 4.8 V
  • Accuracy: ±1.5%
  • Package: 8-SSOP
  • Operating Temperature: -40°C to 125°C
  • Commonly used in: Motor drive & control, robotics, sensing & instrumentation and medical applications
