Same model may have multiple batches, images only for reference.

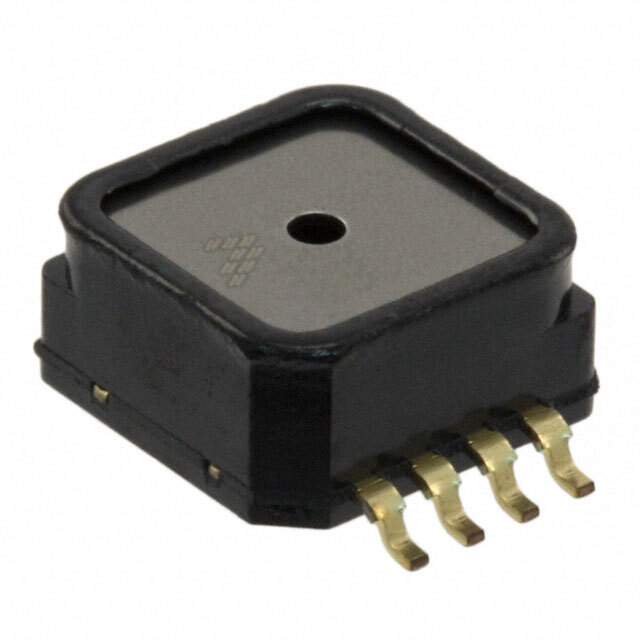

MPXH6115A6T1 Real Image
Same model may have multiple batches, images only for reference.

MPXH6115A6T1

Part No MPXH6115A6T1
Manufacturer Freescale Semiconductor - NXP
Catalog Pressure Sensors, Transducers
Description Board Mount Pressure Sensor 0.2V to 4.7V 15kPa to 115kPa Absolute Automotive 8-Pin SSOP T/R / PRESSURE SENS 16.7PSI MAX 8SSOP
Datasheet
MPXH6115A6T1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer NXP
Status Active
Pressure Type Absolute
Operating Pressure 2.18 PSI to 16.68 PSI (15 kPa to 115 kPa)
Output Type Analog Voltage
Output 0.2 V to 4.7 V
Accuracy ±1.5%
Supply Voltage - Operating 4.75 V to 5.25 V
Port Style No Port
Features Temperature Compensated
Termination Style PCB
Maximum Pressure 58.02 PSI (400 kPa)
Temperature Range - Operating -40°C to 125°C
Case / Package 8-SSOP
Win Source Part Number 016777-MPXH6115A6T1
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Computers & Computer Peripherals, Wireless, Portable Devices, Sensing & Instrumentation, Industrial, Automotive
Family Name MPXH6115A
Introduction Date August 11, 2001
ECCN EAR99
Country of Origin China, Philippines, Republic of Korea, Thailand
Halogen Free Not Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian MPXH6115A6T1 CAD Model

Description

The 016777-MPXH6115A6T1 is an analog voltage output pressure sensor manufactured by NXP.

  • Feature: Temperature-compensated
  • Accuracy: ±1.5%
  • Pressure Range: 2.18 PSI to 16.68 PSI
  • Operating Temperature: -40°C to 125°C
  • Supply Voltage: 4.75V to 5.25V
  • Suitable for: Computers, wireless devices, portable devices, sensing and instrumentation, industrial, and automotive
