Same model may have multiple batches, images only for reference.

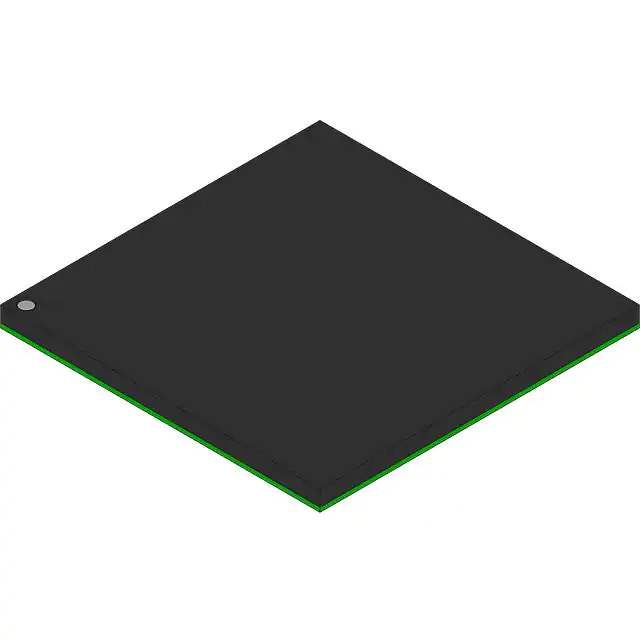

MPC860SRZQ80D4 Real Image
Same model may have multiple batches, images only for reference.

MPC860SRZQ80D4

Part No MPC860SRZQ80D4
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microprocessors
Description IC MPU MPC86XX 80MHZ 357BGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microprocessors
Mfr Freescale Semiconductor - NXP
Series MPC86xx
Package Bulk
Product Status Active
Core Processor MPC8xx
Number of Cores/Bus Width 1 Core, 32-Bit
Speed 80MHz
Co-Processors/DSP Communications; CPM
RAM Controllers DRAM
Graphics Acceleration No
Ethernet 10Mbps (4)
Voltage - I/O 3.3V
Temperature Range - Operating 0°C ~ 95°C (TJ)
Mounting Type Surface Mount
Package / Case 357-BBGA
Supplier Device Package 357-PBGA (25x25)
Additional Interfaces HDLC/SDLC, I2C, IrDA, PCMCIA, SPI, TDM, UART/USART
Standard Package 2 pcs
MSL Level 3 (168 Hours)
REACH Status Vendor Undefined
ECCN 3A991
HTSUS 8542.31.0001
Win Source Part Number 643765-MPC860SRZQ80D4
Ultra Librarian 3D Model Ultra Librarian MPC860SRZQ80D4 CAD Model

Description

The MPC860SRZQ80D4 is an integrated circuit microprocessor from the MPC86xx series.

  • Series: MPC86xx
  • Core: Single
  • Bus Width: 32-bit
  • Speed: 80MHz
  • Co-processors: Communications and CPM
  • RAM Controllers: DRAM
  • Interfaces: HDLC/SDLC, I2C, IrDA, PCMCIA, SPI, TDM, and UART/USART
  • Voltage: 3.3V
  • Mounting: Surface Mount
  • Commonly used in: embedded systems
