Same model may have multiple batches, images only for reference.

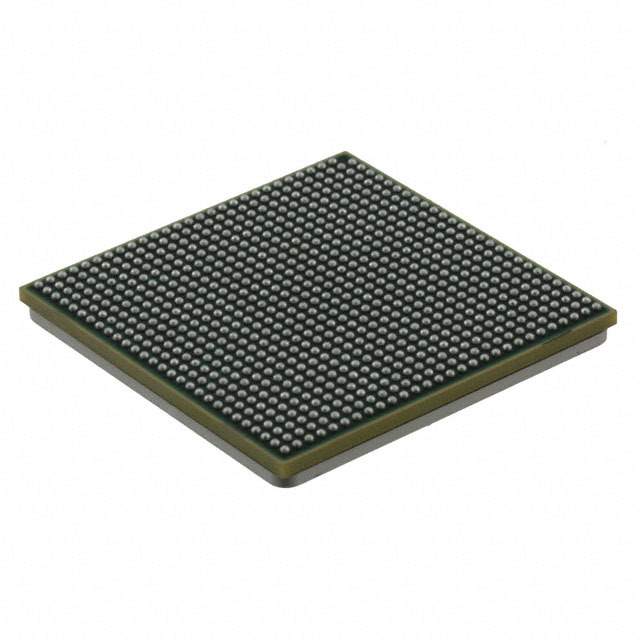

MPC8569VJAQLJB Real Image
Same model may have multiple batches, images only for reference.

MPC8569VJAQLJB

Part No MPC8569VJAQLJB
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microprocessors
Description IC MPU MPC85XX 1.067GHZ 783BGA
Datasheet
MPC8569VJAQLJB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tray
Status Active
Core Processor PowerPC e500v2
Number of Cores/Bus Width 1 Core, 32-Bit
Speed(Frequency) 1.067GHz
Co-Processors/DSP Communications; QUICC Engine
RAM Controllers DDR2, DDR3, SDRAM
Graphics Acceleration No
Ethernet 10/100 Mbps (8), 1 Gbps (4)
USB USB 2.0 (1)
Voltage - I/O 1.0V, 1.5V, 1.8V, 2.5V, 3.3V
Temperature Range - Operating 0°C to 105°C (TA)
Security Package / Case 783-BBGA, FCBGA
Case / Package 783-FCPBGA (29x29)
Additional Interfaces DUART, HSSI, I2C, MMC/SD, PCI, RapidIO, SPI, TDM, UART
Win Source Part Number 142275-MPC8569VJAQLJB
Ultra Librarian 3D Model Ultra Librarian MPC8569VJAQLJB CAD Model

Description

The NXP MPC8569VJAQLJB is a PowerPC e500v2 core processor with 32-bit bus width and 1 core.

  • Communications Co-Processors/DSPs: Yes
  • RAM Controller: DDR2, DDR3, SDRAM
  • USB: USB 2.0
  • Additional Interfaces: DUART, HSSI, I2C, MMC/SD, PCI, RapidIO, SPI, TDM, UART
  • Temperature Range: 0°C to 105°C (TA)
  • Speed: 1.067GHz
  • Package: 783-FCPBGA (29x29)
