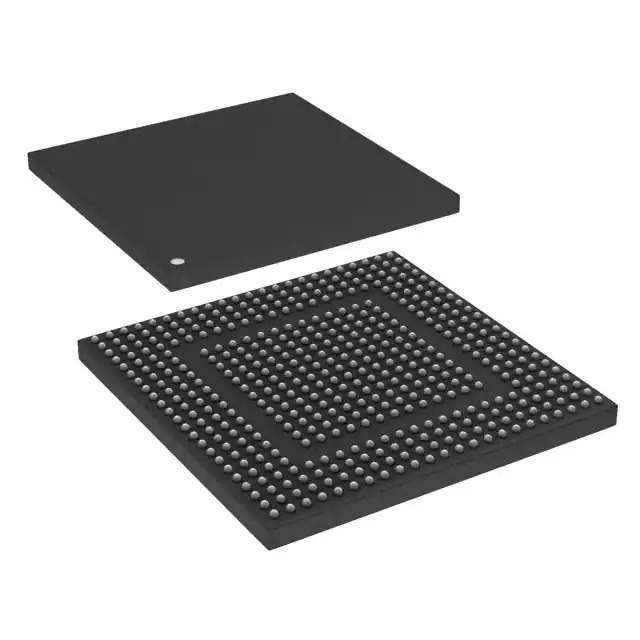

MPC8308VMAGD Real Image MPC8308VMAGD Real Image1 MPC8308VMAGD Real Image2
Same model may have multiple batches, images only for reference.
MPC8308VMAGD Real Image MPC8308VMAGD Real Image1 MPC8308VMAGD Real Image2
MPC8308VMAGD Real Image MPC8308VMAGD Real Image1 MPC8308VMAGD Real Image2
Same model may have multiple batches, images only for reference.

MPC8308VMAGD

Part No MPC8308VMAGD
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microprocessors
Description IC MPU MPC83XX 400MHZ 473MAPBGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microprocessors
Mfr Freescale Semiconductor - NXP
Series MPC83xx
Package Tray
Product Status Obsolete
Core Processor PowerPC e300c3
Number of Cores/Bus Width 1 Core, 32-Bit
Speed 400MHz
RAM Controllers DDR2
Graphics Acceleration No
Ethernet 10/100/1000Mbps (3)
USB USB 2.0 (1)
Voltage - I/O 1.8V, 2.5V, 3.3V
Temperature Range - Operating 0°C ~ 105°C (TA)
Mounting Type Surface Mount
Package / Case 473-LFBGA
Supplier Device Package 473-MAPBGA (19x19)
Additional Interfaces DUART, HSSI, I2C, MMC/SD/SDIO, SPI
Standard Package 420 pcs
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 740199-MPC8308VMAGD
Ultra Librarian 3D Model Ultra Librarian MPC8308VMAGD CAD Model

Description

The 740199-MPC8308VMAGD is an embedded microprocessor from Freescale Semiconductor - NXP.

  • Series: MPC83xx
  • Processor: PowerPC e300c3 core
  • Processor Speed: 400MHz
  • Cores: 1
  • Bus Width: 32-bit
  • RAM Controller: DDR2
  • Interfaces: DUART, HSSI, I2C, MMC/SD/SDIO, SPI
  • Package: 473-LFBGA
  • Standard Package: 420 pcs
  • Operating Temperature: 0°C to 105°C (TA)
  • Product Status: Obsolete
