MCIMX6D6AVT10AD

Part No MCIMX6D6AVT10AD
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microprocessors
Description IC MPU I.MX6D 1.0GHZ 624FCBGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tray
Status Active
Core Processor ARM Cortex-A9
Number of Cores/Bus Width 2 Core, 32-Bit
Speed(Frequency) 1.0GHz
Co-Processors/DSP Multimedia; NEON SIMD
RAM Controllers LPDDR2, LVDDR3, DDR3
Graphics Acceleration Yes
Display & Interface Controllers Keypad, LCD
Ethernet 10/100/1000 Mbps (1)
SATA SATA 3Gbps (1)
USB USB 2.0 + PHY (4)
Voltage - I/O 1.8V, 2.5V, 2.8V, 3.3V
Temperature Range - Operating -40°C to 125°C (TJ)
Security Features ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, Tamper Detection

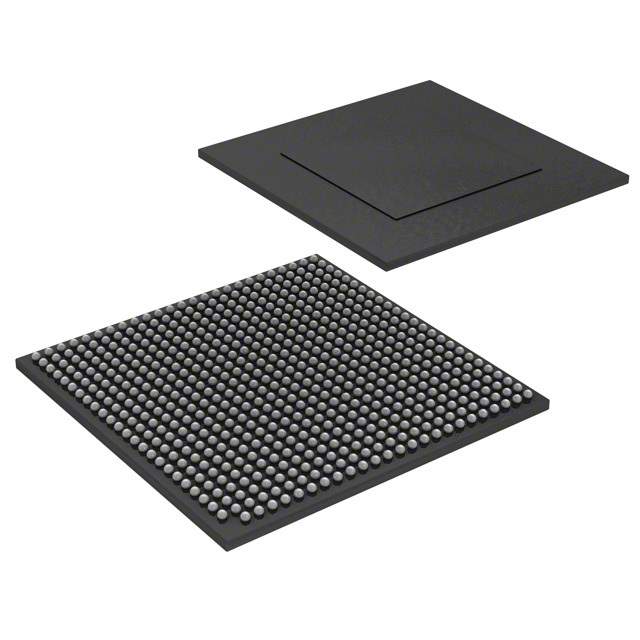

Case / Package 624-FCBGA (21x21)
Additional Interfaces CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, UART
Win Source Part Number 023021-MCIMX6D6AVT10AD
Family Name MCIMX6D
Introduction Date January 14, 2014
ECCN 5A992
Country of Origin Malaysia, Republic of Korea
Estimated EOL Date 2026
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MCIMX6D6AVT10AD CAD Model

Description

The NXP 023021-MCIMX6D6AVT10AD is a 32-bit ARM Cortex-A9 core processor with two cores and multimedia co-processors such as NEON SIMD.

  • Core Processor: ARM Cortex-A9
  • Bus Width: 32-bit
  • Number of Cores: Two cores
  • Multimedia co-processors: NEON SIMD
  • RAM controllers: LPDDR2, LVDDR3, and DDR3
  • Graphics acceleration: Yes
  • Display & interface controllers: Keypad and LCD
  • Voltage range for I/O: 1.8V, 2.5V, 2.8V, 3.3V
  • Security features: ARM TZ, boot security, cryptography, and tamper detection
  • Additional interfaces: CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, and UART
  • Package: 624-FCBGA (21x21)
  • Category: Integrated Circuits
  • Lifecycle Status: Active
