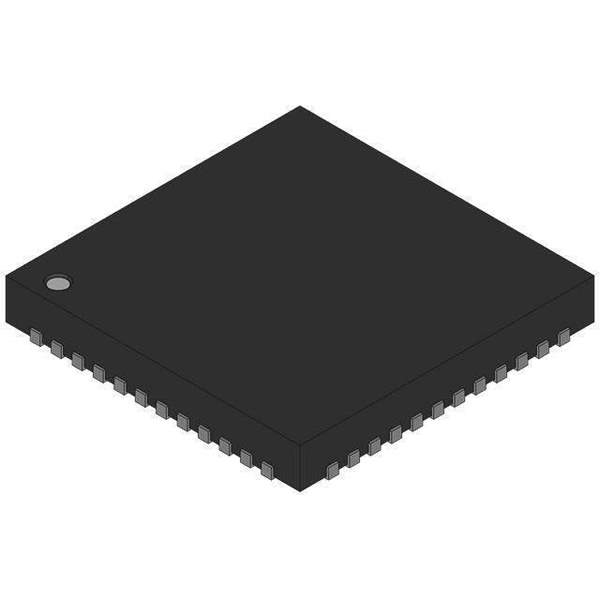

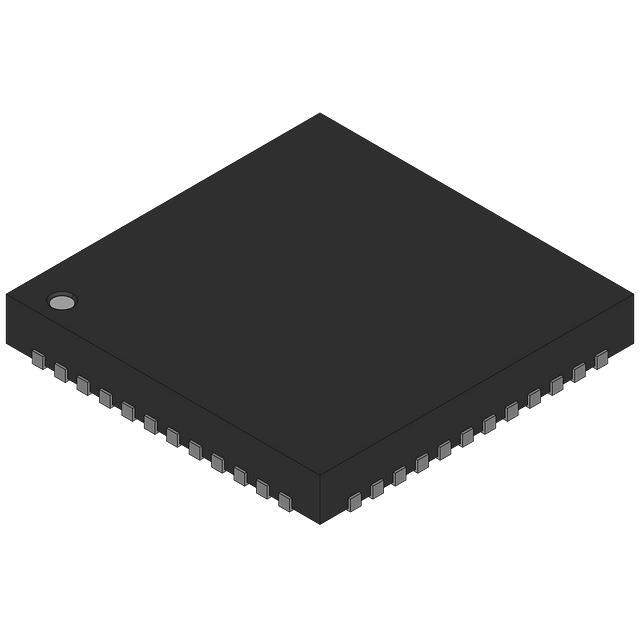

MC9S08AW16CFDE Real Image
Same model may have multiple batches, images only for reference.

MC9S08AW16CFDE

Part No MC9S08AW16CFDE
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microcontrollers
Description IC MCU 8BIT 16KB FLASH 48QFN
Datasheet
MC9S08AW16CFDE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tray
Status Active
Core Processor S08
Part Core Size 8-Bit
Speed(Frequency) 40MHz
Number of I/O 38
Program Memory Size 16KB (16K x 8)
Program Memory Type FLASH
Data RAM Size 1K x 8
Supply Voltage - Operating 2.7 V to 5.5 V
Data Converters A/D 8x10b
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 48-QFN-EP (7x7)
Win Source Part Number 074739-MC9S08AW16CFDE
Ultra Librarian 3D Model Ultra Librarian MC9S08AW16CFDE CAD Model

Description

The NXP 232005 is a S08 core processor with 16KB program memory size and 1K x 8 data RAM size.

  • I/O ports: 38
  • Data Converters: 8x10b A/D
  • Frequency: 40MHz
  • Operating Temperature: -40°C to 85°C (TA)
  • Supply Voltage: 2.7 V to 5.5 V
  • Package: 48-QFN-EP (7x7)
