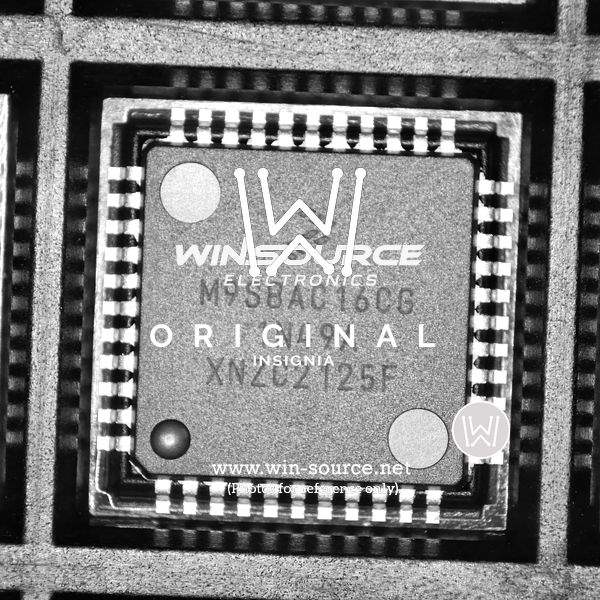

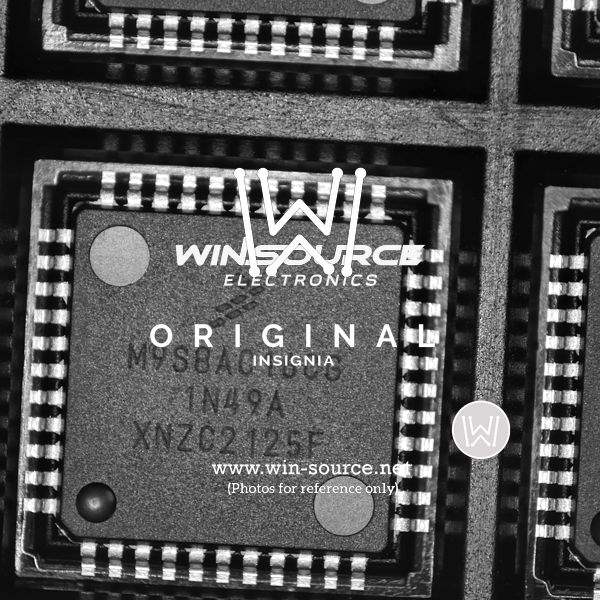

MC9S08AC16CFGE Real Image MC9S08AC16CFGE Real Image1 MC9S08AC16CFGE Real Image2
Same model may have multiple batches, images only for reference.
MC9S08AC16CFGE Real Image MC9S08AC16CFGE Real Image1 MC9S08AC16CFGE Real Image2
MC9S08AC16CFGE Real Image MC9S08AC16CFGE Real Image1 MC9S08AC16CFGE Real Image2
Same model may have multiple batches, images only for reference.

MC9S08AC16CFGE

Part No MC9S08AC16CFGE
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microcontrollers
Description IC MCU 8BIT 16KB FLASH 44LQFP
Datasheet
MC9S08AC16CFGE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tray
Status Active
Core Processor S08
Part Core Size 8-Bit
Speed(Frequency) 40MHz
Number of I/O 34
Program Memory Size 16KB (16K x 8)
Program Memory Type FLASH
Data RAM Size 1K x 8
Supply Voltage - Operating 2.7 V to 5.5 V
Data Converters A/D 8x10b
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 44-LQFP (10x10)
Win Source Part Number 022966-MC9S08AC16CFGE
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MC9S08AC16CFGE CAD Model

Description

The NXP MC9S08AC16CFGE is a popular 8-bit microcontroller that has a core processor of S08.

  • I/Os: 34
  • Program Memory Size: 16KB (16K x 8)
  • Program Memory Type: FLASH
  • Data Converter: A/D 8x10b
  • Speed: 40MHz
  • Temperature Range: -40°C to 85°C
  • Case/Package: 44-LQFP (10x10)
  • Operating Supply Voltage: 2.7V to 5.5V
  • Data RAM Size: 1K x 8
  • Supply and Demand: Balance
